Description

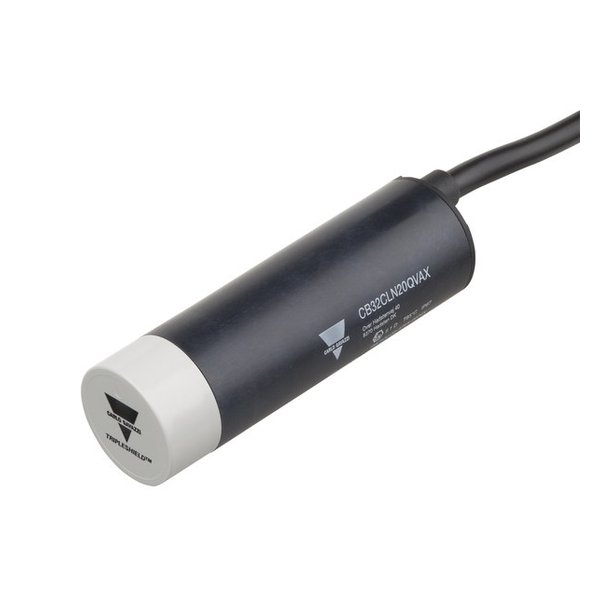

Carlo Gavazzi CB32CLN20QVAX10M — CAP PROX. Manufacturer designation: Capacitive Proximity Sensor. Capacitive Proximity Sensor, Non-flush mountable, Sensing Range 20mm, Adjustable 4-20mm, Power Supply 24VAC/DC, SPDT relay output, OFF-delay, Cable PVC, Housing, Round 32 x 101mm, Tripleshield, ATEX, IP67 New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | CB32CLN20QVAX10M |
| Product Category | Sensors |
| Rated operating distance | 20 mm |
| Installation Type | Non-Flush |
| Diameter | 32 mm |
| Output type | Relay contact |
| Output function | Change-over contact |
| Connection type | Cable |
| Housing type | Cylindrical, smooth barrel |
| Housing material | Plastic |
| Rated power supply | 20 V … 28 V |
| Degree of protection | IP67 |
| Body PBT | Conductive |
| Power supply (brown | blue cable) |
| Relay (black | yellow cable) |
| Relay ON (black | yellow cable) |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
