Description

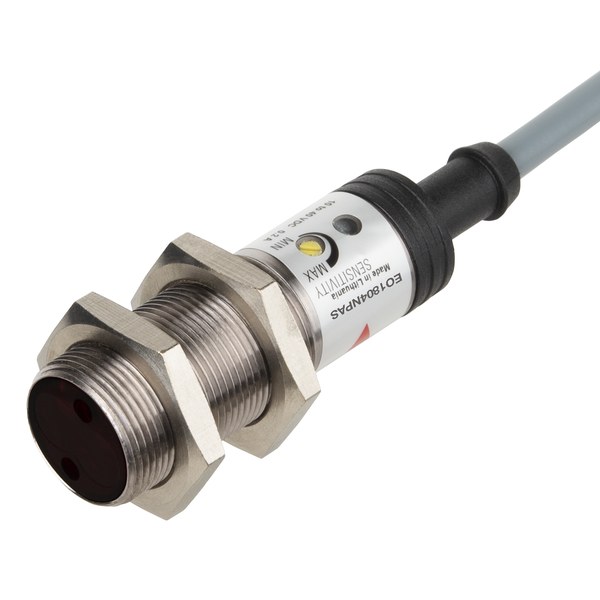

Carlo Gavazzi EO1804NPAS — PHOTO DR MET. Manufacturer designation: Diffuse-reflective Photoelectric Sensor. Diffuse-reflective Photoelectric Sensor, range 400 mm, infrared modulated light 880nm, Power Supply 10-40VDC, NPN, NO+NC, 2m Cable New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | EO1804NPAS |
| Product Category | Power Supplies |
| Rated operating distance (Sn) | 0 mm … 400 mm |
| Output type | NPN |
| Output function | Other |
| Connection Type | Cable |
| Housing type | Cylindrical, threaded barrel |
| Housing material | Metal |
| Light source | Infrared light |
| Sensing mode | Light/dark switching |
| Degree of protection | IP67 |
| Rated power supply | 10 V … 40 V |
| E-Number (NO) | 4351086 |
| E-Number (SE) | 3834910 |
| Output ON | Make switch ing (NO) BK (4) |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
