Description

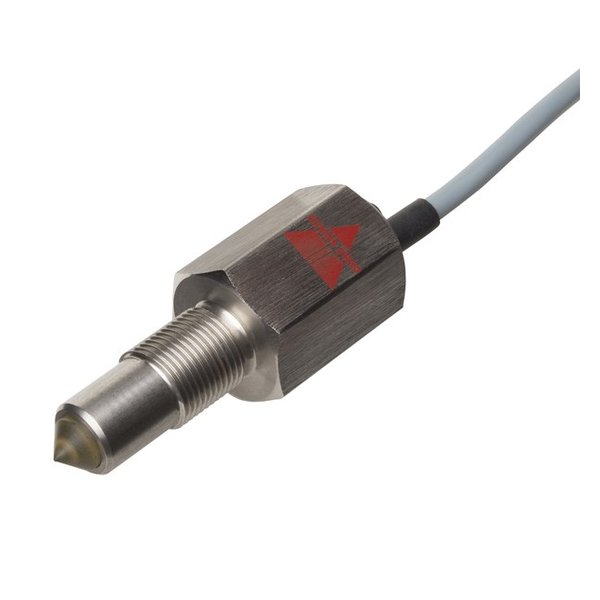

Carlo Gavazzi VPA1MNA — PHOTO IP SS PSU NPN NO+NC. Manufacturer designation: Sensor for liquid level detection. High chemical resistance. Infrared light. Stainless steel AISI 303 housing. Ambient light 0 – 50.000 lux. NPN. Sensor for liquid level detection. High chemical resistance. Infrared light. Stainless steel AISI 303 housing. Ambient light 0 – 50.000 lux. NPN, NO+NC, 10-40 VDC, 2 m PVC Cable. IP67 New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | VPA1MNA |
| Product Category | Sensors |
| Rated operating distance (Sn) | 0 mm … 0 mm |
| Output type | NPN |
| Output function | Change-over (NO/NC) |
| Connection Type | Cable |
| Housing type | Cylindrical, threaded barrel |
| Housing material | Metal |
| Light source | Infrared light |
| Sensing mode | Light/dark switching |
| Degree of protection | IP67 |
| Rated power supply | 10 V … 40 V |
| Liquid level difference Horizontal mounting | ± 5 mm |
| LED indication on plug types Vertical mounting | ± 2.5 mm |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
