Description

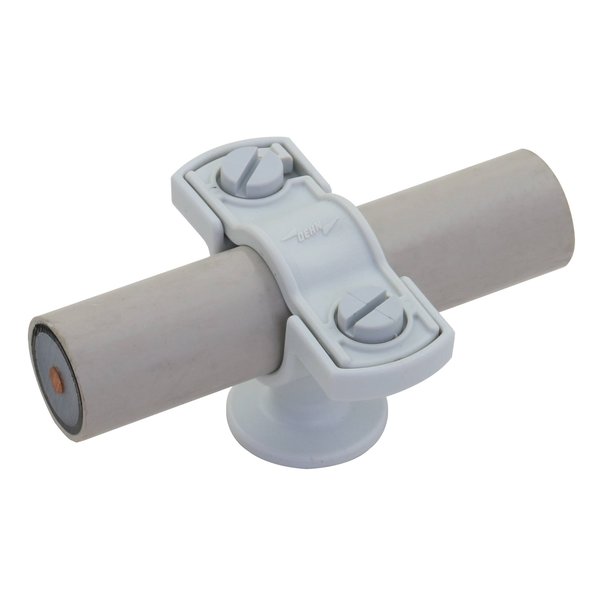

Dehn LH ZS 23 H19 IGM8 GR PA — Conductor Holder PA. Manufacturer designation: Conductor holder for the HVI Conductor / HVI light plus Conductor. For wall mounting and for mounting in the sealing end range. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | LH ZS 23 H19 IGM8 GR PA |
| Article No. (MPN) | 275225 |
| Product Category | Earthing & Lightning Protection |
| Material of conductor holder | PA |
| Conductor support Rd | 23 mm |
| Female thread | M8 |
| Fixing hole | 6.5 mm |
| Screw | d h M6 x 13 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
| EAN / GTIN | 4013364103467 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
