Description

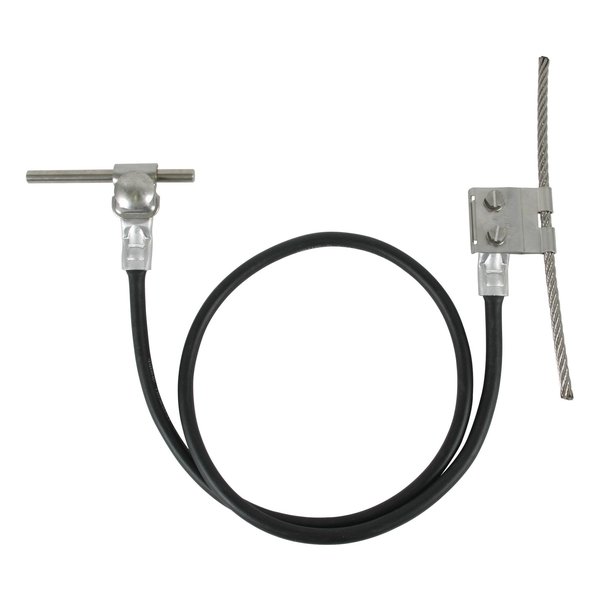

Dehn ASSA D6 L1000 6.10 CU V2A — Connection Set For Safety Rope Systems. Manufacturer designation: Rope diameter 6 mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | ASSA D6 L1000 6.10 CU V2A |
| Article No. (MPN) | 365509 |
| Product Category | Earthing & Lightning Protection |
| Clamping range of connection lug | Ø6 mm |
| Rope structure | 7 x 7 / 7 x 19 mm |
| Terminal lug material | StSt |
| Clamping piece support Rd | 6-10 mm |
| Length | 1000 mm |
| Material (cable) | Cu |
| Cross section | 16 mm² |
| Temperature range | -40 °C … +80 °C |
| Insulation | rubber EM5 black |
| EAN / GTIN | 4013364141773 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
