Description

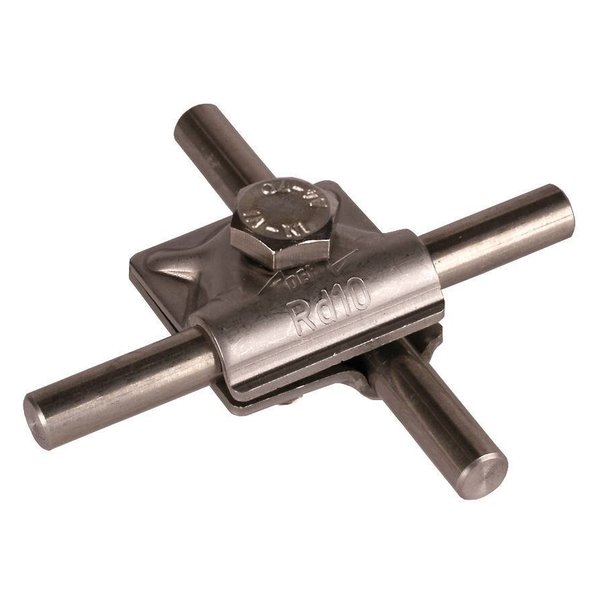

Dehn MVK 10 SKM10X35 NIRO A4 — MV Clamp. Manufacturer designation: With hexagon screw. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | MVK 10 SKM10X35 NIRO A4 |
| Article No. (MPN) | 391058 |
| Product Category | Earthing & Lightning Protection |
| Material of clamp | StSt (V4A) |
| Material No. clamp | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI clamp | 316Ti / 316L / 316 |
| Clamping range Rd | 10 mm |
| Screw | d i M10 x 35 mm |
| Material of screw / nut | StSt (V4A) |
| Material No. bolt / nut | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI bolt / nut | 316Ti / 316L / 316 |
| Standard | EN 62561-1 |
| EAN / GTIN | 4013364293236 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
