Description

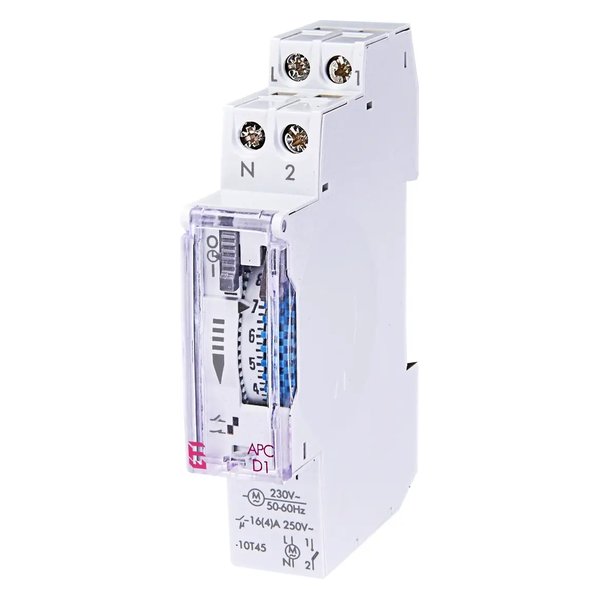

ETI APC-D1. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | APC-D1 |
| Article No. (MPN) | 002472001 |
| Product Category | Distribution & Installation |
| Time range | 15 min – 24 hours |
| Function | Time relay |
| Application | Sterowanie ogrzewaniem, wentylacją, |
| Type of control | Time |
| Supply voltage | 230 V |
| Voltage type | AC |
| Max. contact current | 16 A |
| Rated current | 16 A |
| Rated frequency | 50/60 Hz |
| Max. load capacity at AC1 | 4,000 VA |
| Clamping cross-section | 1-4 mm² |
| Type of installation | DIN rail 35 mm |
| IP rating | IP20 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
