Description

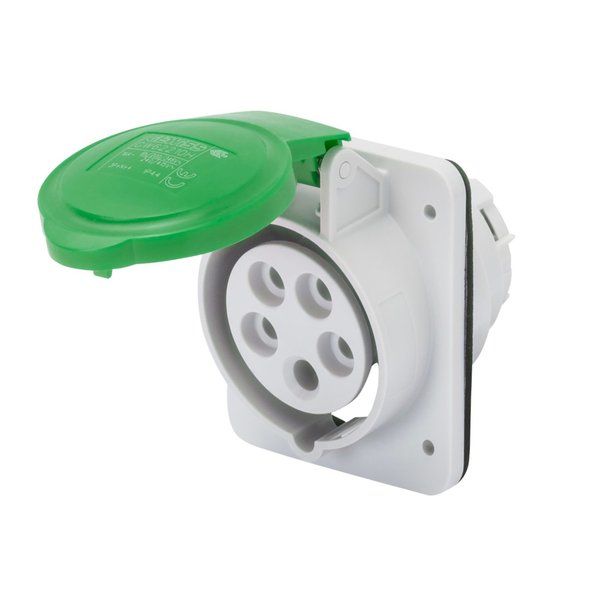

Gewiss GW62822H — 10° Angled Flush-Mounting. Manufacturer designation: 10° angled flush-mounting socket-outlet HP – IP44/IP54 – 3P+E 32A >50V. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Gewiss |
|---|---|
| Article No. (MPN) | GW62822H |
| Product Category | Distribution & Installation |
| Colour | Green |
| Rated current (A) | 32 |
| IP degree | IP44/IP54 |
| No. of poles | 3P+E |
| Mechanical resistance | IK09 |
| Reference h | 10 |
| Flange dimensions (mm) | 95×80 |
| Type | 10° angled flush-mounting socket-outlet |
| Rated voltage | >50 V |
| Frequency | 100 – 300 Hz |
| Terminal tightening capacity | 2.5-6 mm² flexible cables – 2.5-10 mm² rigid cables |
| Operating temperature | -25 +55 °C |
| Type of wiring | With screw |
| Type of material | Halogen-free in compliance with EN 60754-2 |
| Electrocod | 2211 |
| Glow wire test | 850 °C (active parts) – 650 °C (passive parts) |
| Total number of operations | > 2000 |
| Permissible overload | 42 A |
| Breaking capacity at 1.1 Un | 40 A |
| Insulation resistance | > 10 MΩ |
| Thermo-pressure with ball | 125 °C (active parts) – 80 °C (passive parts) |
| Condition | New & original |
| Availability | On request |
