Description

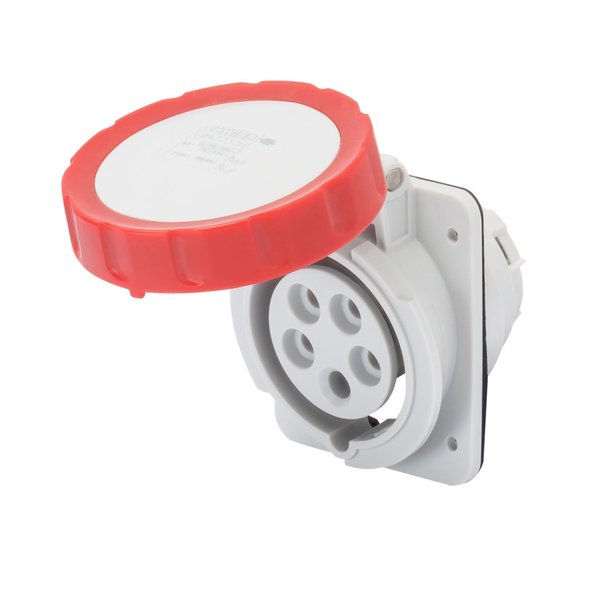

Gewiss GW62845H — 10° Angled Flush-Mounting. Manufacturer designation: 10° angled flush-mounting socket-outlet HP – IP66/IP67 – 3P+N+E 16A 44. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Gewiss |
|---|---|
| Article No. (MPN) | GW62845H |
| Product Category | Distribution & Installation |
| Colour | Red |
| Rated current (A) | 16 |
| IP degree | IP66/IP67 |
| No. of poles | 3P+N+E |
| Mechanical resistance | IK09 |
| Reference h | 11 |
| Flange dimensions (mm) | 85×75 |
| Type | 10° angled flush-mounting socket-outlet |
| Rated voltage | 440 – 460 V |
| Frequency | 60 Hz |
| Terminal tightening capacity | 1-2.5 mm² flexible cables – 1.5-4 mm² rigid cables |
| Operating temperature | -25 +55 °C |
| Type of wiring | With screw |
| Type of material | Halogen-free in compliance with EN 60754-2 |
| Electrocod | 2211 |
| Glow wire test | 850 °C (active parts) – 650 °C (passive parts) |
| Total number of operations | > 5000 |
| Permissible overload | 22 A |
| Breaking capacity at 1.1 Un | 20 A |
| Insulation resistance | > 10 MΩ |
| Thermo-pressure with ball | 125 °C (active parts) – 80 °C (passive parts) |
| Condition | New & original |
| Availability | On request |
