Description

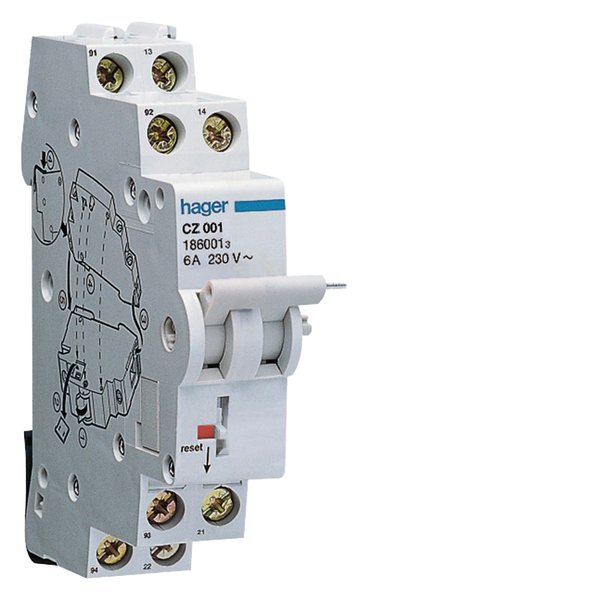

Hager CZ001 — Residual Current Circuit Breaker Auxiliary. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Hager |
|---|---|
| Article No. (MPN) | CZ001 |
| Product Category | Circuit Breakers |
| Rated current IN | 6 A |
| Type of connection | Screw connection |
| Rated insulation voltage Ui | 500 V |
| Supply voltage type | AC |
| Rated operational voltage Ue | 230 – 440 V |
| Frequency | 50 – 50 Hz |
| Number of modules | 1 |
| Width | 18 mm |
| Ambient operating temperature | 25 – 60 °C |
| Mechanical endurance in operating cycles | 12000 |
| Electrical endurance in operating cycles | 6000 |
| Power dissipation at IN | 0.10 W |
| RoHS conform | Yes |
| EAN / GTIN | 3250611860013 |
| Condition | New & original |
| Availability | On request |
Download official Hager German product datasheet (source document) (PDF)
Independent distributor — not an authorised Hager dealer. All parameters are taken from the official manufacturer documentation.
