Description

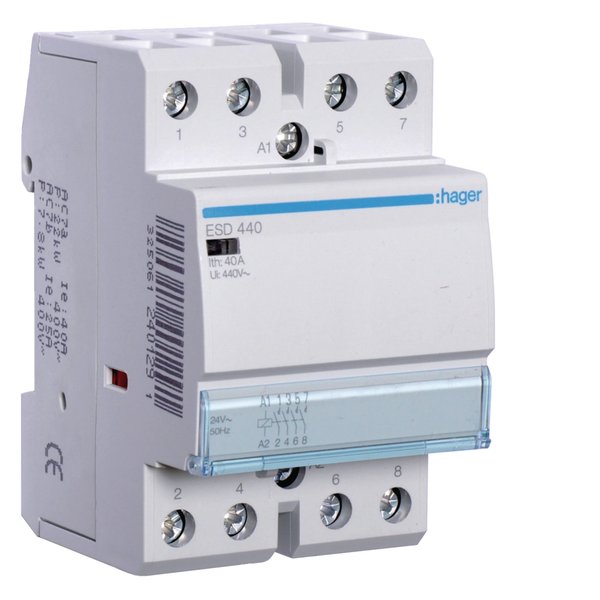

Hager ESD440 — Contactor 4NO 24VAC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Hager |
|---|---|
| Article No. (MPN) | ESD440 |
| Product Category | Relays & Couplers |
| Rated current IN | 40 A |
| Frequency | 50 – 50 Hz |
| Rated impulse withstand voltage Uimp | 4000 V |
| Rated insulation voltage Ui | 440 V |
| Rated operational voltage Ue | 400 – 400 V |
| Number of poles | 4 |
| Number of modules | 3 |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 60 mm |
| Ambient operating temperature | 10 – 50 °C |
| Mechanical endurance in operating cycles | 100000 |
| Electrical endurance in operating cycles | 30000 |
| Power dissipation at IN | 15 W |
| REACh-SVHC free | Yes |
| RoHS conform | Yes |
| EAN / GTIN | 3250612401291 |
| Condition | New & original |
| Availability | On request |
Download official Hager German product datasheet (source document) (PDF)
Independent distributor — not an authorised Hager dealer. All parameters are taken from the official manufacturer documentation.
