Description

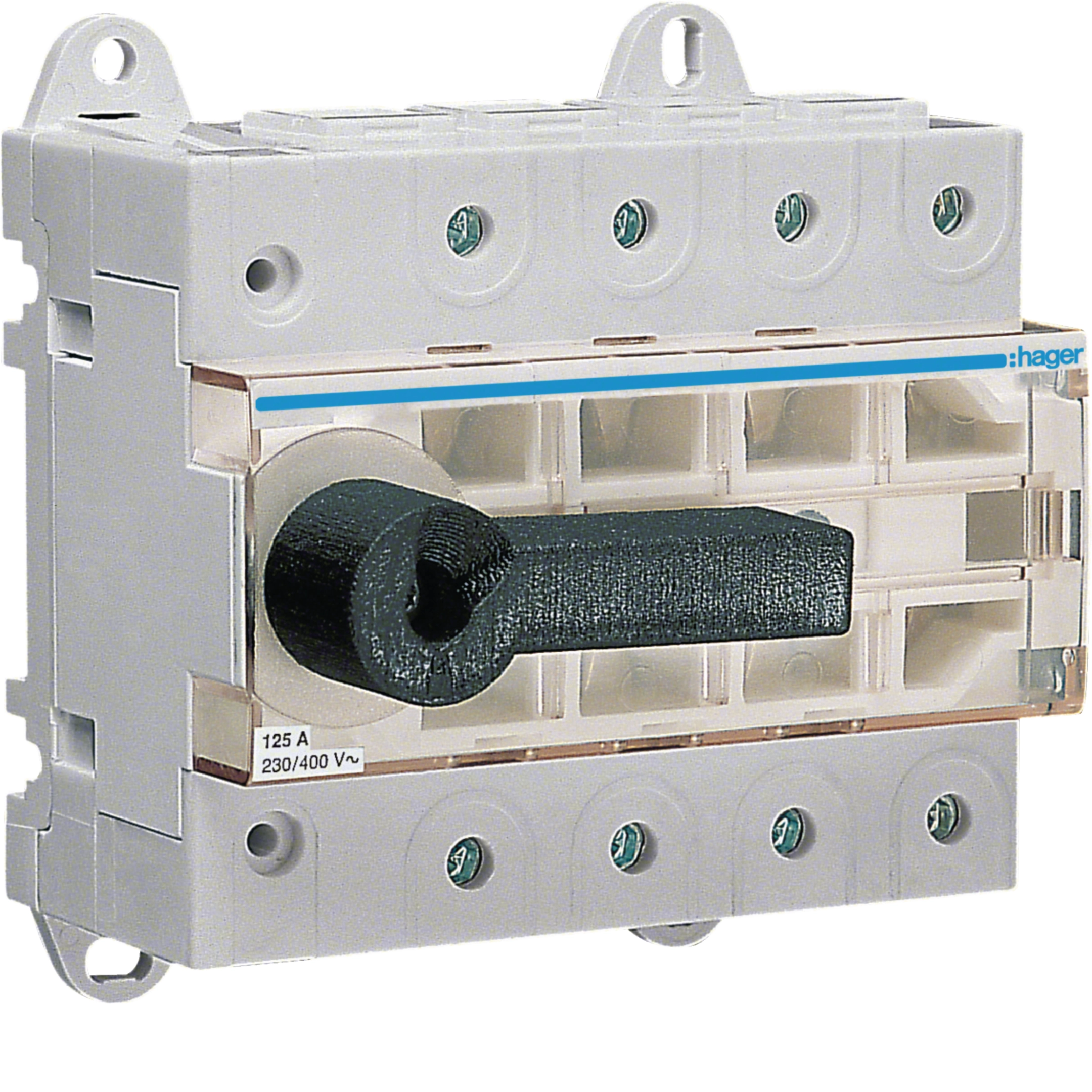

Hager HA306 — LOAD BREAK SWITCH 3P 125A. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Hager |
|---|---|
| Article No. (MPN) | HA306 |
| Product Category | Switches & Socket-Outlets |
| Rated current IN | 125 A |
| Type of pole | 3P |
| Number of poles | 3 |
| Rated insulation voltage Ui | 800 V |
| Rated operational voltage Ue | 380 – 415 V |
| Rated impulse withstand voltage Uimp | 8000 V |
| Ingress Protection (IP) class | IP20 |
| Frequency | 50 – 50 Hz |
| Type of connection | Screw connection |
| Number of modules | 6 |
| Nominal torque | 6 – 6.6 Nm |
| Height | 86.5 mm |
| Width | 108 mm |
| Depth | 90 mm |
| Power dissipation at IN | 17.10 W |
| Ambient operating temperature | 20 – 70 °C |
| REACh-SVHC free | Yes |
| RoHS conform | Yes |
| EAN / GTIN | 3250613113063 |
| Condition | New & original |
| Availability | On request |
Download official Hager German product datasheet (source document) (PDF)
Independent distributor — not an authorised Hager dealer. All parameters are taken from the official manufacturer documentation.
