Description

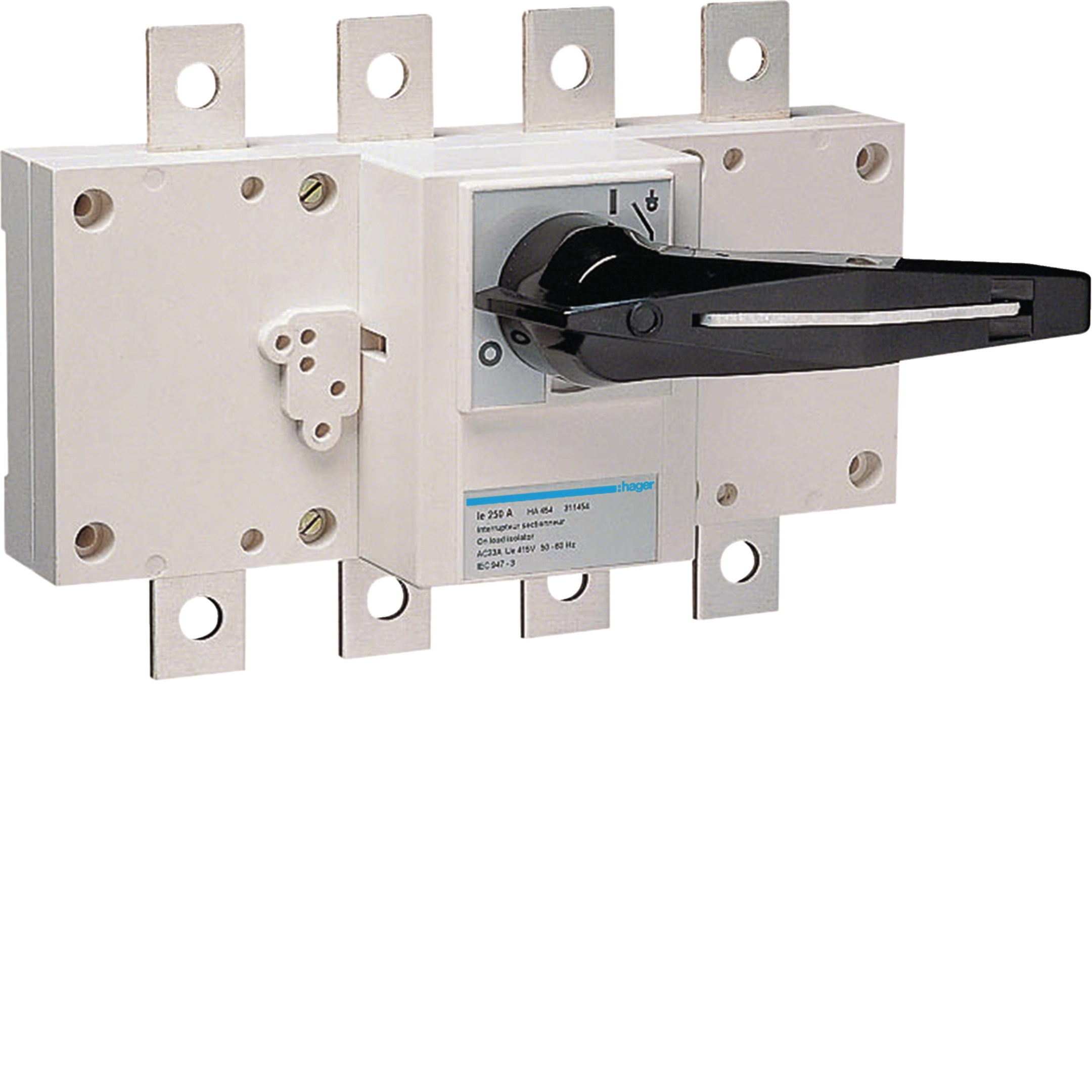

Hager HA454 — Load Break Switch 4P 250A. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Hager |
|---|---|
| Article No. (MPN) | HA454 |
| Product Category | Safety Switching Devices |
| Rated current IN | 250 A |
| Number of poles | 4 |
| Type of pole | 4P |
| Ingress Protection (IP) class | IP00 |
| Rated insulation voltage Ui | 800 V |
| Rated impulse withstand voltage Uimp | 8000 V |
| Rated operational voltage Ue | 380 – 415 V |
| Frequency | 50 – 60 Hz |
| Height | 160 mm |
| Width | 125 mm |
| Depth | 230 mm |
| Nominal torque | 20 – 22 Nm |
| Power dissipation at IN | 17.40 W |
| Ambient operating temperature | 20 – 70 °C |
| Halogen-free | Yes |
| REACh-SVHC free | Yes |
| RoHS conform | Yes |
| EAN / GTIN | 3250613114541 |
| Condition | New & original |
| Availability | On request |
Download official Hager German product datasheet (source document) (PDF)
Independent distributor — not an authorised Hager dealer. All parameters are taken from the official manufacturer documentation.
