Description

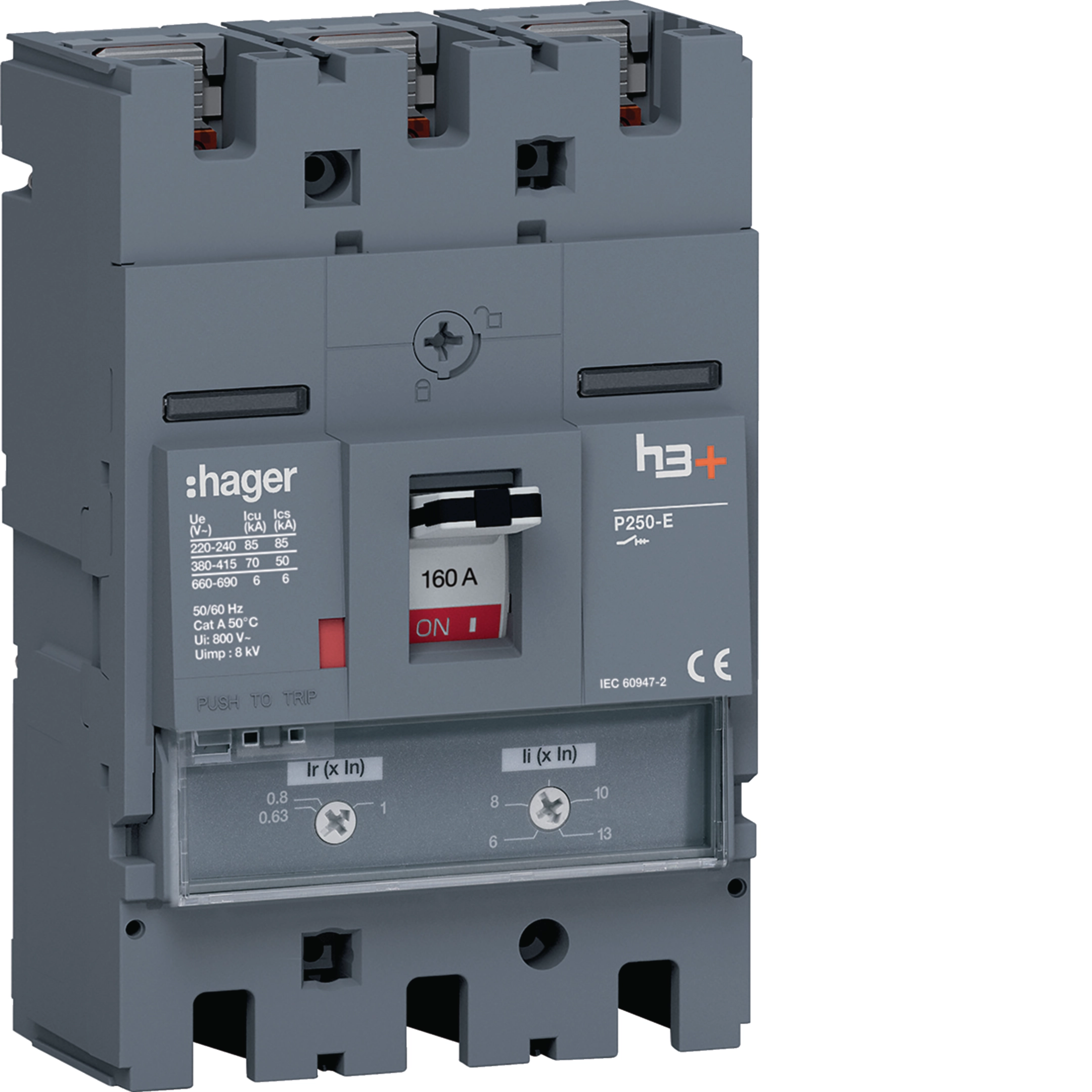

Hager HET160DR — Moulded Case Circuit Breaker H3+. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Hager |
|---|---|
| Article No. (MPN) | HET160DR |
| Product Category | Circuit Breakers |
| Rated current IN | 160 A |
| Rated service short-circuit breaking capacity Ics at 230V AC according to IEC 60947-2 | 85 kA |
| Rated service short-circuit breaking capacity Ics at 400V AC according to IEC 60947-2 | 50 kA |
| Number of poles | 3 |
| Frequency | 50 – 60 Hz |
| Rated impulse withstand voltage Uimp | 8000 V |
| Rated insulation voltage Ui | 800 V |
| Rated operational voltage Ue | 220 – 690 V |
| Ingress Protection (IP) class | IP4X |
| Suitable for DIN rail | No |
| Height | 165 mm |
| Width | 105 mm |
| Depth | 97 mm |
| Nominal torque | 12 – 12 Nm |
| Nominal torque, bottom terminal | 12 – 12 Nm |
| Nominal torque, top terminal | 12 – 12 Nm |
| Power dissipation at IN | 29.10 W |
| Electrical endurance in operating cycles | 10000 |
| Mechanical endurance in operating cycles | 40000 |
| REACh-SVHC free | Yes |
| EAN / GTIN | 3250613170462 |
| Condition | New & original |
| Availability | On request |
Download official Hager German product datasheet (source document) (PDF)
Independent distributor — not an authorised Hager dealer. All parameters are taken from the official manufacturer documentation.
