Description

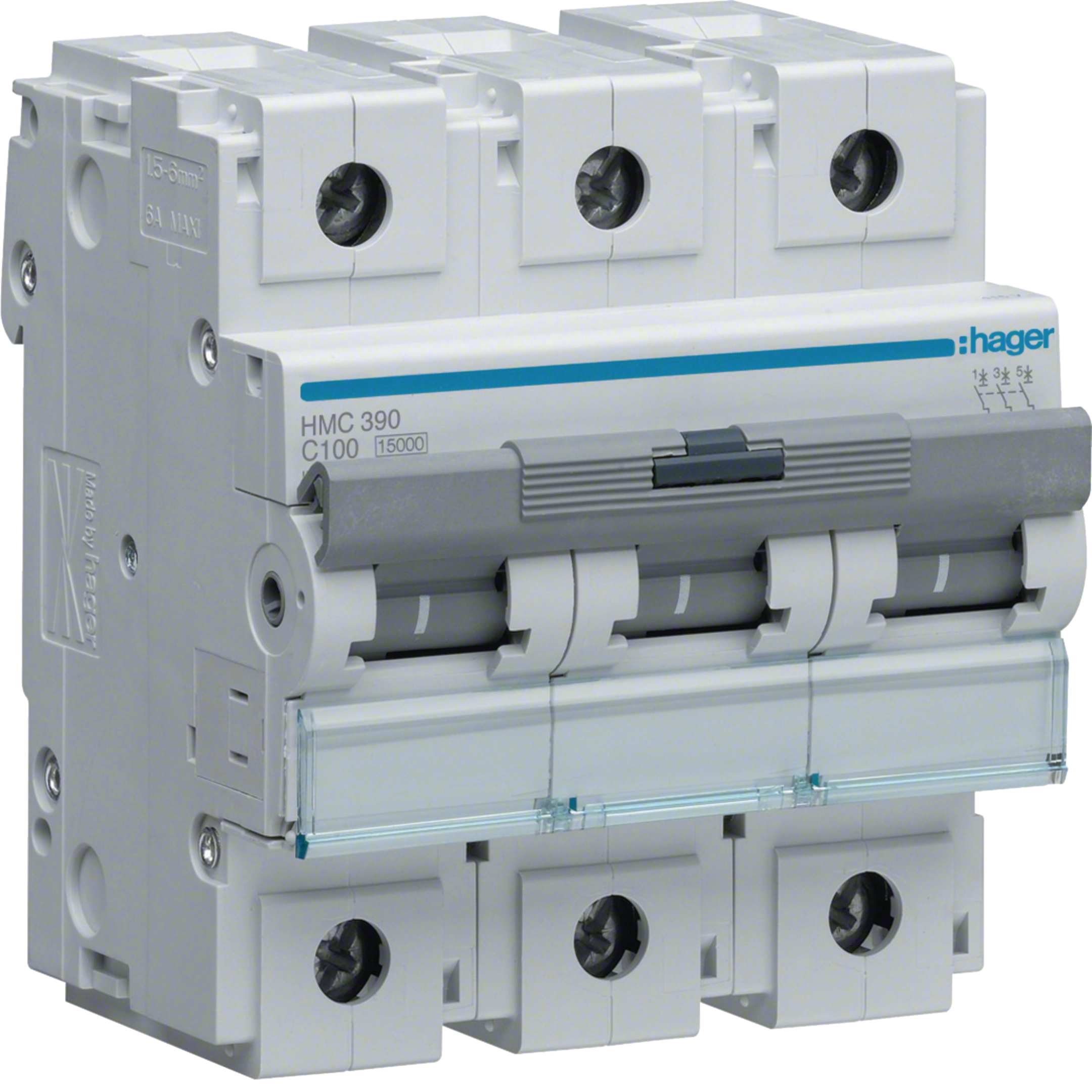

Hager HMC390 — MCB 3P 15kA C-100A 4.5M. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Hager |
|---|---|
| Article No. (MPN) | HMC390 |
| Product Category | Circuit Breakers |
| Rated current IN | 100 A |
| Type of pole | 3P |
| Rated service short-circuit breaking capacity Ics at AC according to IEC 60947-2 | 50 % |
| Rated service short-circuit breaking capacity Ics at AC according to IEC 60898-1 | 7.5 kA |
| Tripping characteristic | C |
| Rated short-circuit breaking capacity Icn according to IEC 60898-1 | 15 kA |
| Rated operational voltage Ue | 415 – 415 V |
| Supply voltage type | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6000 V |
| Frequency | 50 – 60 Hz |
| Type of bottom connection for modular devices | Screw connection |
| Type of top connection for modular devices | Screw connection |
| Ingress Protection (IP) class | IP20 |
| Class of energy limitation I²t | 3 |
| Humidity protection | For all climatic zones |
| Number of modules | 4.50 |
| Nominal torque, top terminal | 3.60 – 3.60 Nm |
| Nominal torque, bottom terminal | 3.60 – 3.60 Nm |
| Nominal torque | 3.5 – 5.0 Nm |
| Cross-section of input and output with screws, for massive conductors | 1 – 70 mm² |
| EAN / GTIN | 3250613230203 |
| Condition | New & original |
| Availability | On request |
Download official Hager German product datasheet (source document) (PDF)
Independent distributor — not an authorised Hager dealer. All parameters are taken from the official manufacturer documentation.
