Description

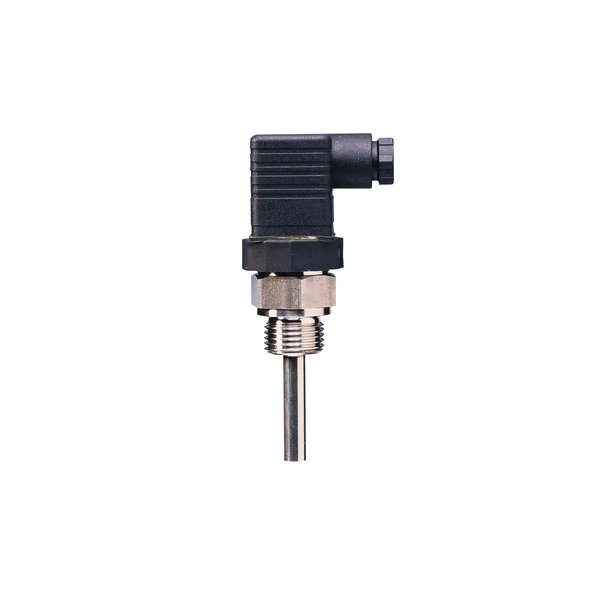

JUMO 902044/20-380-1003-1-8-50-104-26/000 — Resistance thermometer. Official JUMO designation: Screw-in RTD temperature probe. Product series: With plug connector according to DIN EN 175301. Resistance thermometer, Pg9, 1xPt100 zl, 8x50mm, G 1/2, -50..+200°C. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00365259 |
| Order code (type) | 902044/20-380-1003-1-8-50-104-26/000 |
| Product Category | Sensors |
| Product line | WTH Einschr.m.Steckverb.n.DIN/GL |
| Description (manufacturer) | Resistance thermometer, Pg9, 1xPt100 zl, 8x50mm, G 1/2, -50..+200°C |
| Connection | Connector |
| Areas of application | Shipbuilding, engine manufacturing, industrial boiler plants, pump engineering |
| Operating temperature | -50 to +260 °C |
| Approvals | GL |
| Process connection | Thread |
| Protection type | IP65 |
| Protection fitting | Stainless steel 1.4571 |
| Special features | Replaceable measuring insert for variants without transmitter |
| Option | Head transmitter |
| Measuring circuits | 1 |
| Sensor | Pt100 |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.129 kg |
| Customs tariff number (HS) | 90251900 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
