Description

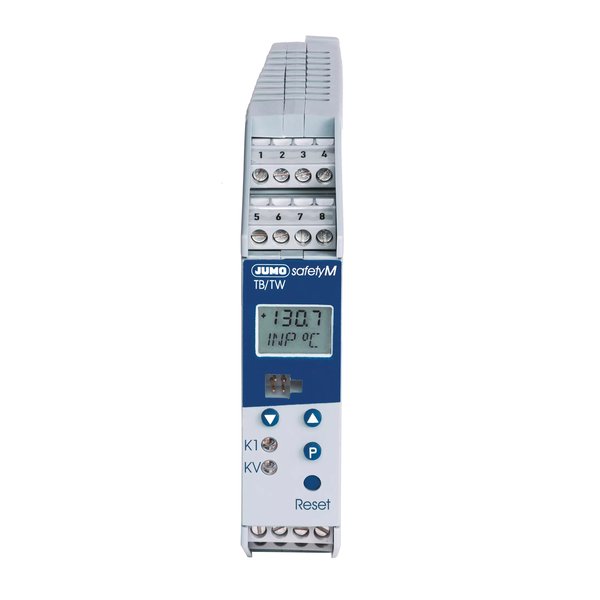

JUMO 701160/8-0153-001-25/000 — Temperature limiter/monitor. Official JUMO designation: JUMO safetyM TB/TW. Temperature limiter/monitor, Pt100 dl, AC/DC 20 bis 30 V. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00506486 |
| Order code (type) | 701160/8-0153-001-25/000 |
| Product Category | PLC & Controllers |
| Product line | TW, TB |
| Description (manufacturer) | Temperature limiter/monitor, Pt100 dl, AC/DC 20 bis 30 V |
| Measurement input | Pt100, Pt1000 in two-wire or three-wire circuit, 2 × Pt100 for differential measurement |
| Wide voltage supply range | AC 110 to 240 V +10 %/-15 % |
| Linearization | 17 linearizations can be set |
| LCD display | Two-line display for indication of measured values and parameters |
| Input filter | Digital input filter with configurable filter time constants |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.27 kg |
| Customs tariff number (HS) | 90328900 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
