Description

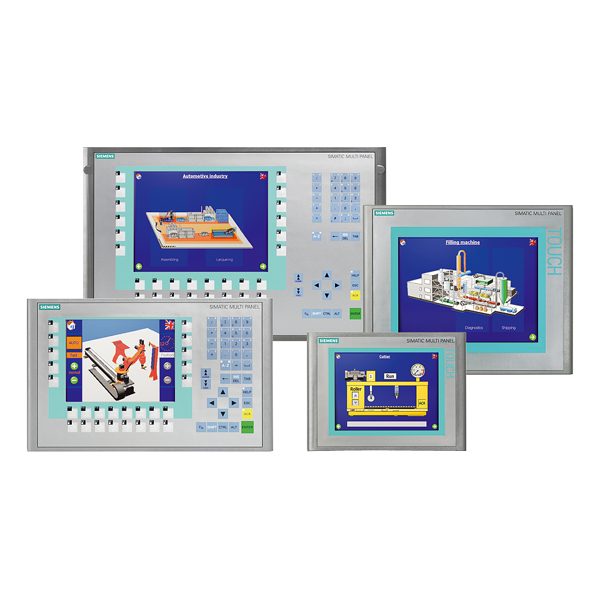

Siemens 6AV6643-0CD01-1AX1 MP277 10″ touch. New original Siemens part; availability and price on request.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Series | MP277 10″ touch |
| Screen diagonal | 10.4 in |
| Number of colors | 65 536 |
| Horizontal image resolution | 640 pixel |
| Vertical image resolution | 480 pixel |
| MTBF backlighting (at 25 °C) | 50 000 h |
| Number of function keys | 0 |
| maximum permissible angle of inclination without external ventilation | 35° |
| Processor type | ARM |
| Type of memory | Flash / RAM |
| Memory available for user data | 6 Mbyte |
| Capacity of main memory, max. | 128 Mbyte |
| Interfaces/bus type | 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) |
| Number of industrial Ethernet interfaces | 1 |
| Number of USB interfaces | 2; Up to 1 GB |
| Multimedia card/SD card slot | 1x Multimedia Card slot, up to 128 MB |
| IP (at the front) | IP65 |
Independent distributor — not an authorised Siemens dealer. Parameters sourced from the official Siemens Industry Online Support (TIOS/TED) datasheet.
