Description

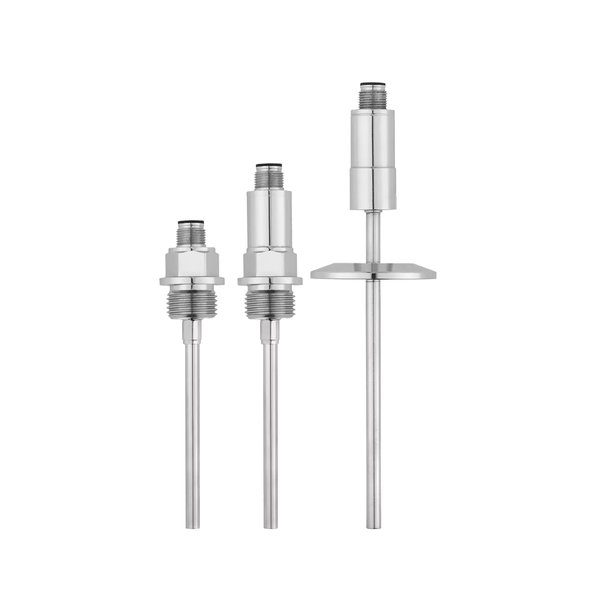

JUMO 902815/10-380-1011-3-6-50-104-24/000 — Resistance thermometer. Official JUMO designation: JUMO dTRANS T100. Product series: Screw-in RTD temperature probe with/without transmitter. Resistance thermometer, M12, 6x50mm, G 1/2, -50..+200°C, Pt100 vl. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00516241 |
| Order code (type) | 902815/10-380-1011-3-6-50-104-24/000 |
| Product Category | Sensors |
| Product line | WTH Einschr.m.Steckv./Dtrans T100 |
| Description (manufacturer) | Resistance thermometer, M12, 6x50mm, G 1/2, -50..+200°C, Pt100 vl |
| Areas of application | Food and pharmaceutical applications, CIP and SIP plants, mechanical and plant engineering, refrigeration and air-conditioning engineering |
| Accuracy | Tolerance class: class B (class A or AA as optional extra) |
| Measuring circuits | 1 |
| Output | Pt100/Pt1000 passive; 1 × programmable transmitter output 4 to 20 mA |
| Operating temperature | -50 to +260 °C |
| Sensor | Pt100, Pt1000 |
| Declaration of conformity | EC 1935/2004 material confirmation |
| Process connection | Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells |
| Approvals | EHEDG, SIL, PL, ATEX/IECEx upon request |
| Protection fitting | Stainless steel 316L |
| Protection type | IP67 |
| Connection | M12 connector |
| Option | Transmitter |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.061 kg |
| Customs tariff number (HS) | 90251900 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
