Description

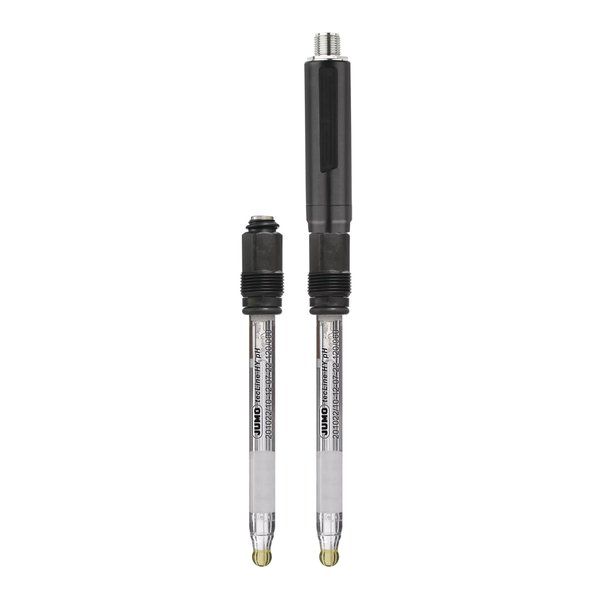

JUMO 201022/10-12-07-18-120/841, — PH-combination electrode. Official JUMO designation: JUMO tecLine HY. Product series: pH combination electrodes for hygienic applications. pH-combination electrode,HT-glas,VP-plug head,PG13,5, intigrated Pt1000. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00659497 |
| Order code (type) | 201022/10-12-07-18-120/841, |
| Product Category | Sensors |
| Product line | tecLine HY pH-Elektroden |
| Description (manufacturer) | pH-combination electrode,HT-glas,VP-plug head,PG13,5, intigrated Pt1000 |
| Diaphragm | Zirconium ceramic diaphragm |
| Active part | High-temperature (HT) glass, suitable for high-alkaline |
| Temperature range | 0 to 135 °C |
| Pressure range | Up to 6 bar |
| Temperature sensor | Pt1000 (class A) |
| Electrode head | N-screw head (S8), Pg13.5 thread VarioPin (VP) plug head, Pg13.5 thread |
| Special feature | Available with reusable JUMO digiLine electronic components (type 202705) |
| Insertion length | 120 or 225 mm |
| Areas of application | Hygienic applications, sterilization and fermentation processes in the food and pharmaceutical industry |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.154 kg |
| Customs tariff number (HS) | 90278930 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
