Description

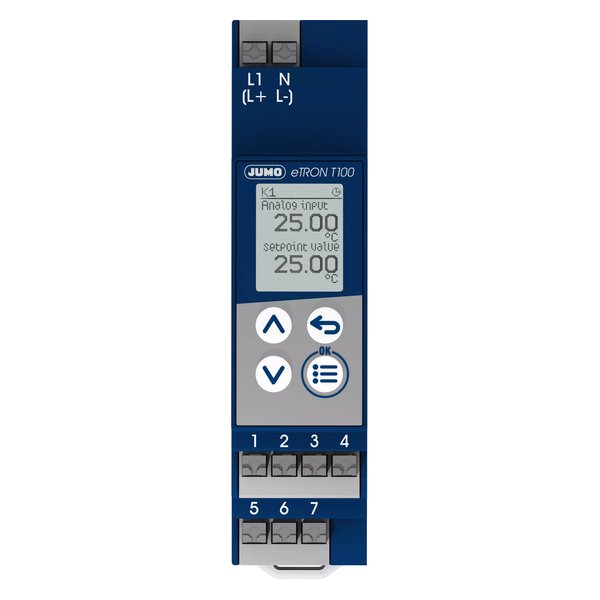

JUMO 701052/8-01-31-00/000 — Electronic thermostat. Official JUMO designation: JUMO eTRON T100. Product series: Electronic thermostat with optional PID two-state controller function. Electronic thermostat, DC 12 bis 24 V/AC 24 V, Pt100, Pt1000, KTY. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00721352 |
| Order code (type) | 701052/8-01-31-00/000 |
| Product Category | PLC & Controllers |
| Product line | eTRON T100 zur Montage Hutschiene |
| Description (manufacturer) | Electronic thermostat, DC 12 bis 24 V/AC 24 V, Pt100, Pt1000, KTY |
| Measuring inputs | Pt100, Pt1000, KTY2X-6; type J, type L, and type K thermocouple; 0(4) to 20 mA; NTC 5 kΩ (at 25 °C); Ni 1000 DIN 43760, Ni 1000 Landis+Gyr TK5000 |
| Outputs | 1 relay (changeover contact 10 A); 1 PhotoMOS® relay |
| Display | Dot-matrix LCD display |
| Electrical connection | PUSH IN terminals |
| Mounting | On DIN rail 35 × 7.5 mm |
| Format (W × H × D) | 22.5 mm × 93.5 mm × 61.6 mm |
| Special features | Data logger, service and operating hours counter, timer function, meeting the standards and specifications for use in rail vehicles according to DIN EN 50155, DIN EN 50121, and DIN EN 45545 |
| Application areas | Standard industry applications, heating and cooling technology, railway applications, building technology |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.12 kg |
| Customs tariff number (HS) | 90321020 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
