Description

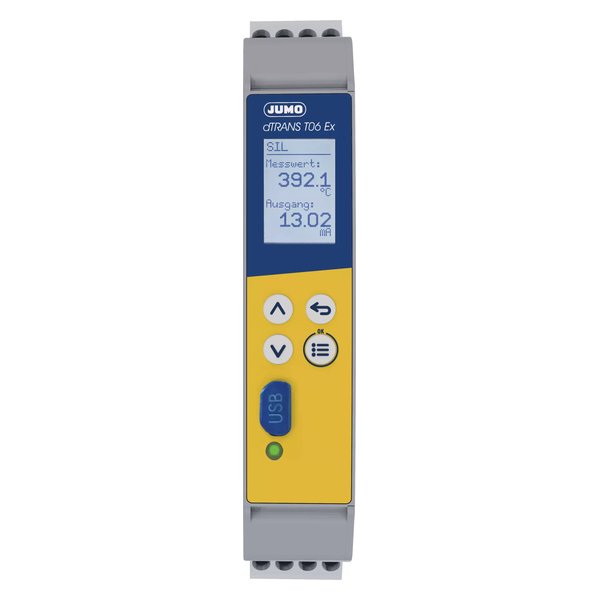

JUMO 707075/8-29/053, — Fourwire transmitter. Official JUMO designation: JUMO dTRANS T06 Ex. Product series: Multifunctional four-wire transmitter in mounting rail case with SIL and Ex approval. Fourwire transmitter, 0-100°C,Pt100 threewire,SIL,Ex approval,Modbus interface. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00729720 |
| Order code (type) | 707075/8-29/053, |
| Product Category | Sensors |
| Product line | JUMO dTRANS T06 Ex |
| Description (manufacturer) | Fourwire transmitter, 0-100°C,Pt100 threewire,SIL,Ex approval,Modbus interface |
| Galvanic isolation | 1.8 kV |
| Installation | Mounting rail 35 mm × 7.5 mm according to DIN IEC 60715 |
| RTD temperature probe input | Pt50, Pt100, Pt500, Pt1000, Ni100, Ni500, Ni1000, Cu50, Cu100, two/three/four-wire circuit |
| Thermocouple input | L, J, U, T, K, E, N, S, R, B, C, A1, D, L, Chromel® Alumel®, PLII, 0 to 1 V |
| Ambient temperature | -10 to +70 °C |
| Output | 0(2) to 10 V or 0(4) to 20 mA (invertible) |
| Special features | Universal input for a number of sensors and standard signals, intuitive operation and configuration on the device or via USB interface with setup program, RS485 interface with Modbus RTU, intelligent additional functions such as min/max drag indicator, operati |
| NAMUR compliant | NE 43 |
| Voltage supply | DC 24 V (four-wire transmitter) |
| Calibration accuracy | ± 0.05 % |
| Configuration | On the device via USB interface with PC setup program |
| Approval | SIL and PL, ATEX and IECEx |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.346 kg |
| Customs tariff number (HS) | 85043129 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
