Description

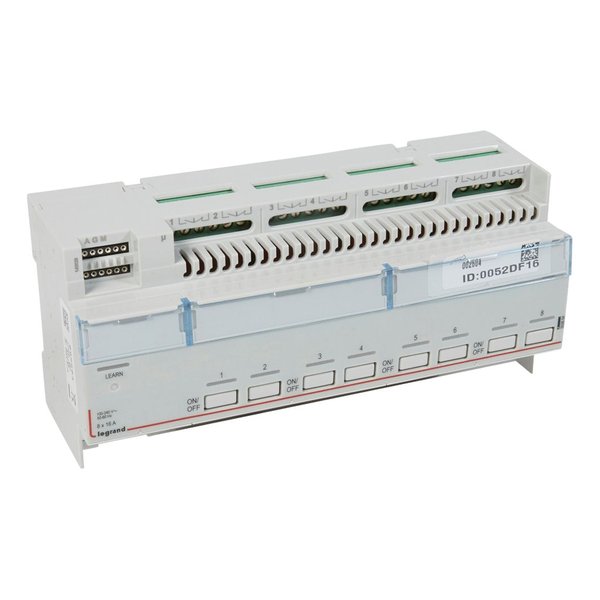

Legrand 002604 — Modular Actuator ON And OFF Function. Manufacturer designation: Modular actuator ON and OFF function with forced operation for MyHOME_Up lighting, 8 relays – 10 modules. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 002604 |
| Product Category | Distribution & Installation |
| Système de bus KNX | No |
| Système de bus KNX-radio | No |
| Système de bus radio | No |
| Système de bus LON | No |
| Système de bus Powernet | No |
| Autres systèmes de bus | Other |
| Mode de pose | DRA (DIN-rail adapter) |
| Largeur en nombre de modules | 10 |
| Commande sur site/commande manuelle | Yes |
| Avec affichage LED | Yes |
| Puissance de coupure max. | 3680W |
| Adapté à une charge C | Yes |
| Calibre/courant nominal assigné (In) | 16A |
| Tension de fonctionnement normale (Min-Max) | 100-240V |
| Différentes phases connectables | No |
| Couplage au bus inclus | Yes |
| Possibilité d’extension modulaire | No |
| Degree of protection (IP) | IP20 |
| Ean/gtin | 3245060026042 |
| EAN / GTIN | 3245060026042 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
