Description

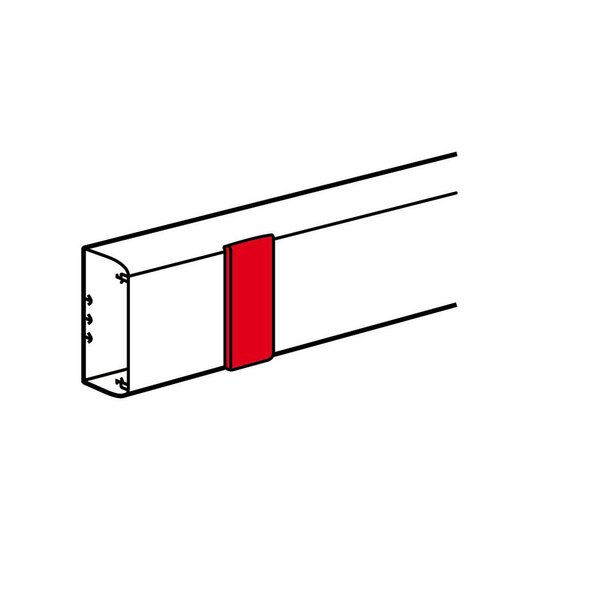

Legrand 010801 — Cover Joint Width. Manufacturer designation: Cover joint width 65mm for DLP monobloc trunking – white. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 010801 |
| Product Category | Cable Support & Routing |
| Largeur du canal d’allège | 105mm |
| Profondeur du canal d’allège | 50mm |
| Largeur de la partie supérieure | 65mm |
| Modèle | Doublage de coupe de partie supérieure |
| Forme | Symétrique |
| Type of fastening | Encliquetable |
| Material | Plastic |
| Material quality | Acrylonitrile butadiene styrene (ABS) |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Colour | White |
| Numéro RAL | 9003 |
| Operating / setting temperature (Min-Max) | -5-60°C |
| Degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK07 |
| Storage temperature (Min-Max) | -25-60°C |
| Ean/gtin | 3245060108014 |
| EAN / GTIN | 3245060108014 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
