Description

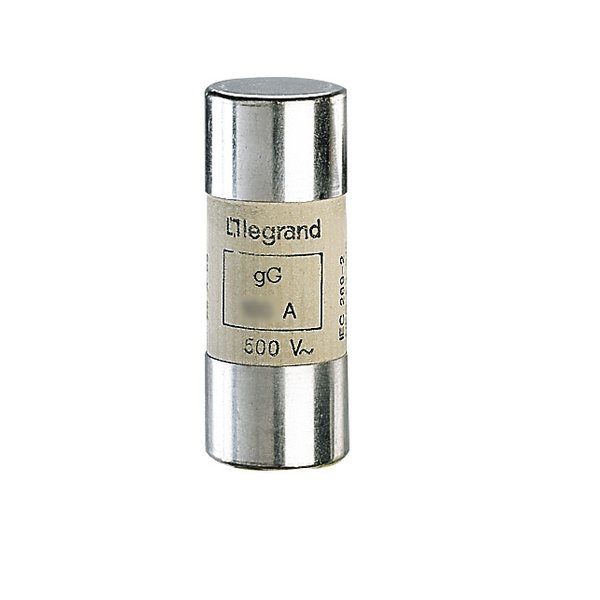

Legrand 015525 — Industrial Cylindrical Cartridge GG. Manufacturer designation: Industrial cylindrical cartridge gG type 22x58mm with striker – 25A. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 015525 |
| Product Category | Distribution & Installation |
| Width | 22mm |
| Modèle | Fusible en céramique |
| Taille | 22×58 mm |
| Calibre/courant nominal assigné (In) | 25A |
| Depth | 58mm |
| Type of voltage | AC/DC |
| Classe de fonctionnement selon IEC 60269 | GG (protection des câbles/protection moteurs/réseaux) |
| Fréquence de fonctionnement nominale (Min-Max) | 42-62Hz |
| Finition du voyant indicateur | Percuteur |
| Dissipation thermique sous courant nominal | 3.5W |
| Operating / setting temperature (Min-Max) | -25-40°C |
| Storage temperature (Min-Max) | -40-70°C |
| Ean/gtin | 3245060155254 |
| EAN / GTIN | 3245060155254 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
