Description

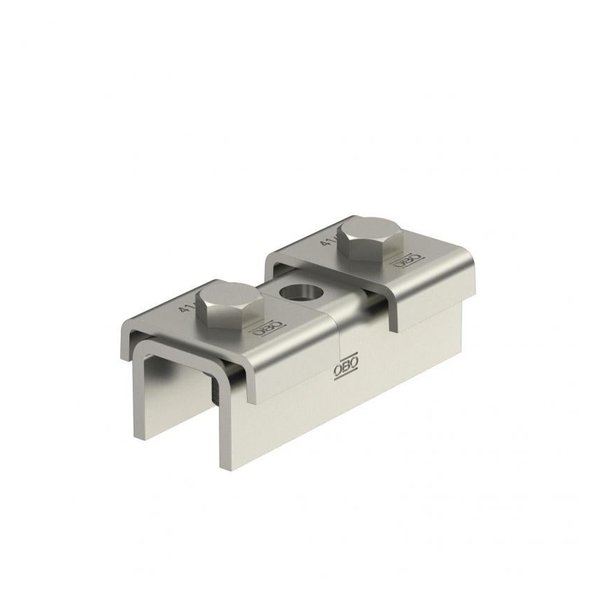

OBO Bettermann SVE 41 A2 — Rail Connector. Manufacturer designation: Rail connector SV with 3 holes A2. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | SVE 41 A2 |
| Article No. (MPN) | 1123126 |
| Product Category | Cable Support & Routing |
| Length | 100 |
| Height | 39,4 mm |
| Rustproof steel, pickled | no |
| Material thickness | 4 mm |
| Static value A | 2,97 cm² |
| Static value ly | 6,05 cm⁴ |
| Static value lz | 9,01 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Hole size | 12 |
| Profile shape | C profile |
| Drill hole spacing, centre | 60 mm |
| With screw accessories | yes |
| Version for | Perforated |
| Suitable for profile shapes | U profile |
| ROHS-conformant | yes |
| Dimension | 100x4mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Product series | Rail system |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
