Description

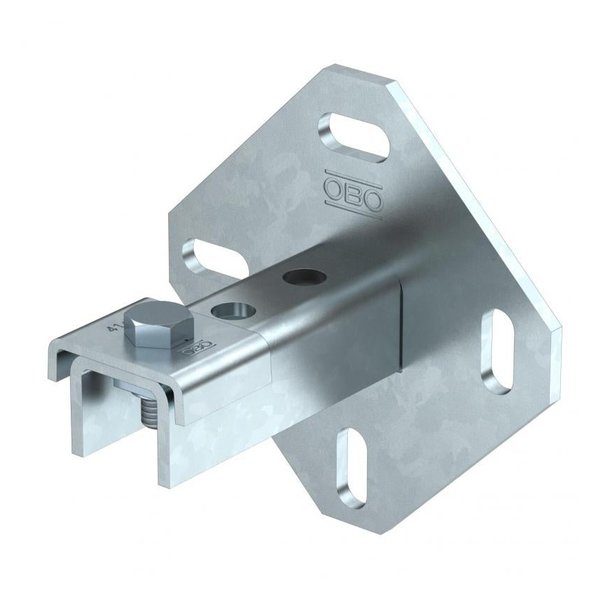

OBO Bettermann WBDHE 41 FT — Bracket. Manufacturer designation: Wall, floor and ceiling bracket with 3 holes FT. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | WBDHE 41 FT |
| Article No. (MPN) | 1123191 |
| Product Category | Cable Support & Routing |
| Length | 102 |
| Height | 110 |
| Version for | Perforated |
| Packaging without plastic | yes |
| Material thickness | 5 mm |
| Static value A | 2,97 cm² |
| Static value ly | 6,05 cm⁴ |
| Static value lz | 9,01 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Hole size | 25 x 11 |
| Profile shape | C profile |
| ROHS-conformant | yes |
| Dimension | 134x110x102 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Product series | Rail system |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
