Description

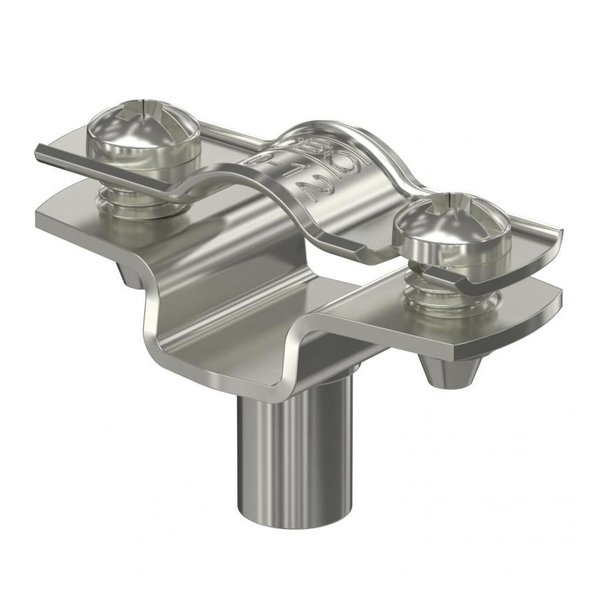

OBO Bettermann ASG 732 12 A4 — Saddle Clamp. Manufacturer designation: Spacer clip 732 A4. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | ASG 732 12 A4 |
| Article No. (MPN) | 1362462 |
| Product Category | Cable Support & Routing |
| Material thickness | 1,25 |
| Material | Stainless steel 1.4571 |
| Clamping range D, max. | 10 |
| Clamping range D, min. | 10 |
| Packaging without plastic | yes |
| Maintain electrical functions | yes |
| For diameter | 10 – 12 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Distance to the wall | yes |
| Version for | Closed |
| ROHS-conformant | yes |
| Dimension | 10-12mm |
| Product series | 732 / 733 |
| Dimension A | 39 mm |
| Dimension B | 27 mm |
| Dimension d max. | 12 mm |
| Dimension d min. | 10 mm |
| Dimension H1 | 12 mm |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
