Description

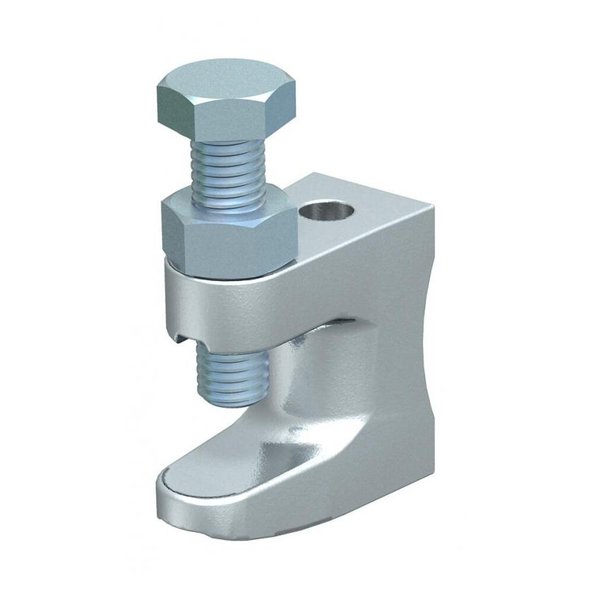

OBO Bettermann FL 1 TG — Fixing Clamp. Manufacturer designation: Screw-in beam clamp, with gland hole. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | FL 1 TG |
| Article No. (MPN) | 1488015 |
| Product Category | Cable Support & Routing |
| Length | 38 |
| Height | 35 |
| Thread | M8 |
| Breaking load | 1,2 |
| Flange thickness F max. | 18 |
| Fastening hole | 11 |
| Dimension L | 38 mm |
| Dimension B | 19 mm |
| Dimension H | 35 mm |
| Dimension F | 18 mm |
| Dimension G (mm) | M8 |
| Dimension D | 9 mm |
| Hinged | no |
| Hinge, adjustable | no |
| Max. Tightening torque | 8 Nm |
| ROHS-conformant | yes |
| Flange thickness F min. | 0 mm |
| Dimension | 0-17mm |
| Material | Cast iron |
| Product series | Support clamp |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
