Description

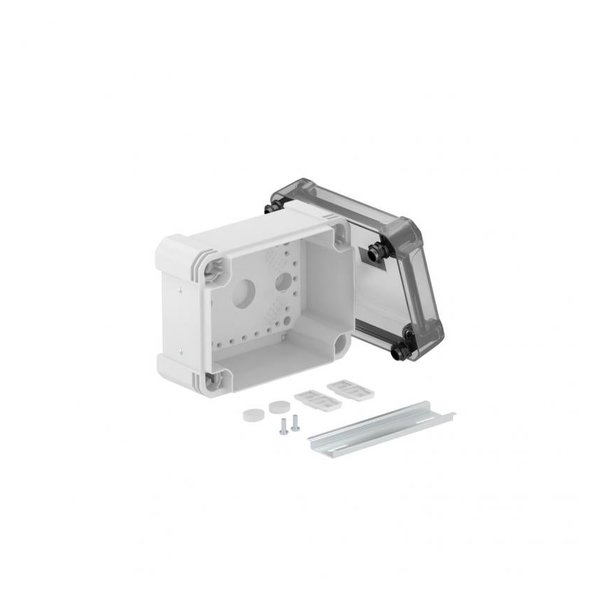

OBO Bettermann X06C R LGR-TR — Empty Housing. Manufacturer designation: Empty housing X 06 with hat profile rail. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | X06C R LGR-TR |
| Article No. (MPN) | 2005560 |
| Product Category | Cable Support & Routing |
| Clear internal dimensions | 137x105x68 |
| Protection rating | IP67 |
| Colour | Light grey; RAL 7035 |
| Length | 151 mm |
| Height | 86 mm |
| Extension option | no |
| Cover fastening | Screwed |
| Shape | Rectangular |
| Weatherproof | yes |
| Protection rating IK code | IK09 |
| Suitable for outdoor use | yes |
| Equipment | Support rail |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 65 °C |
| Dimension | 150x116x86 |
| Material | Polycarbonate |
| Product series | X series |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
