Description

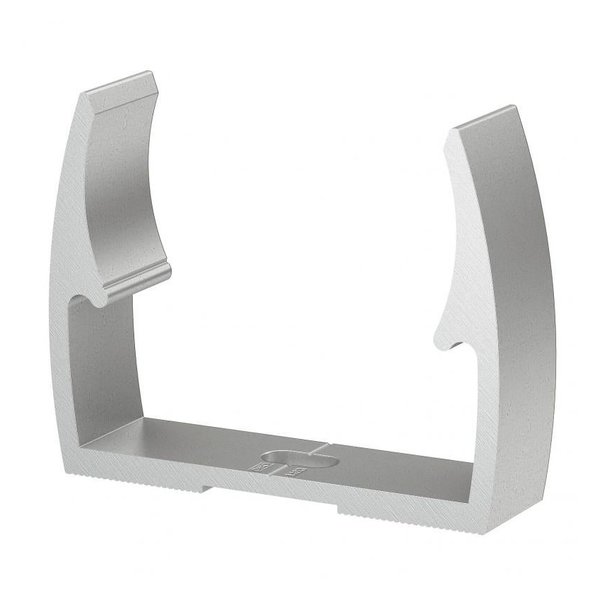

OBO Bettermann ALQ M32 — Quick Clip. Manufacturer designation: Quick clip, aluminium. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | ALQ M32 |
| Article No. (MPN) | 2149932 |
| Product Category | Cable Support & Routing |
| Nominal size | 16 |
| Packaging without plastic | yes |
| Dimension A | 39 mm |
| Dimension B | 18 mm |
| Dimension H | 35 mm |
| Dimension F | 9,5 mm |
| Dimension E | 5,1 mm |
| Halogen-free | no |
| Pull-out value | 120 N |
| UV-resistant | yes |
| Expandable | no |
| Closed | no |
| With inlay | no |
| ROHS-conformant | yes |
| Clamping range D, min. | 32 mm |
| Clamping range D, max. | 32 mm |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 90 °C |
| Dimension | M32 |
| Material | Aluminium |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
