Description

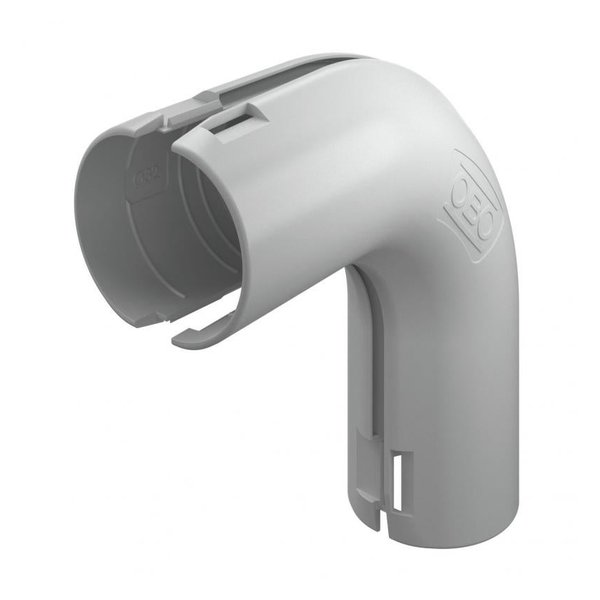

OBO Bettermann 3000 BMS M32 LGR — 90° Quick Pipe. Manufacturer designation: 90° Quick pipe bend, light grey. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 3000 BMS M32 LGR |
| Article No. (MPN) | 2154058 |
| Product Category | Cable Support & Routing |
| Packaging without plastic | yes |
| Dimension L | 103 mm |
| Dimension d | 32,6 mm |
| Dimension B | 38,8 mm |
| Dimension R | 22 mm |
| Dimension L1 | 42 mm |
| Halogen-free | yes |
| Angle of the bend | 90 ° |
| Polished surface | no |
| With sleeve | no |
| Flexible | no |
| Brushed surface | no |
| Two-part | yes |
| Version for | Connector |
| ROHS-conformant | yes |
| Permitted temperature range, min. | 0 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | M32 |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
