Description

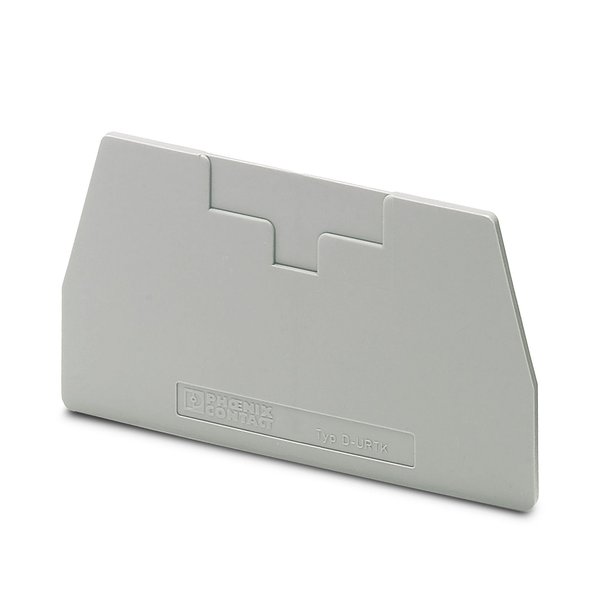

Phoenix Contact 0310020 — D-URTK. Manufacturer designation: D-URTK – Cover – 0310020. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0310020 |
| Product Category | Terminals & Connectors |
| Product type | End cover |
| Ambient temperature (assembly) | -5 °C … 70 °C |
| Ambient temperature (actuation) | -5 °C … 70 °C |
| Permissible humidity (operation) | 20 % … 90 % |
| Permissible humidity (storage/transport) | 30 % … 70 % |
| Color | gray (RAL 7042) |
| Material | PA 6.6 |
| Flammability rating according to UL 94 | V0 |
| Static insulating material application in cold | -60 °C |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Width | 2.2 mm |
| Height | 72 mm |
| Depth | 41.5 mm |
| Item number | 0310020 |
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Sales key | BE19 |
| Product key | BE1Z1X |
| Gtin | 4017918001056 |
| Weight per piece (including packing) | 6 g |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
