Description

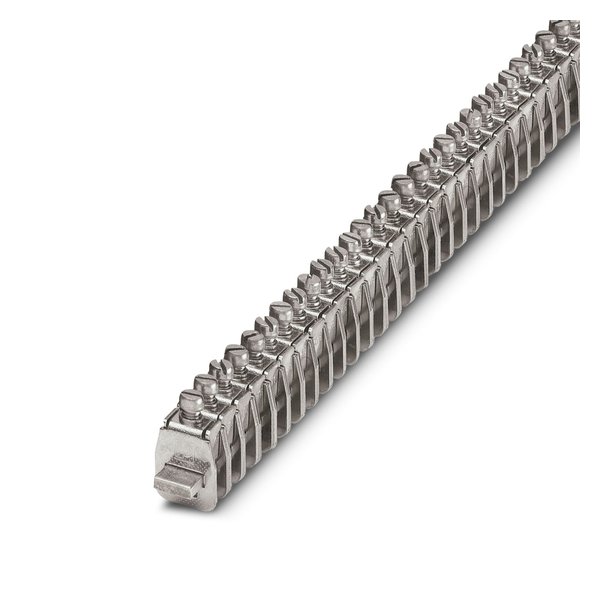

Phoenix Contact 0404033 — AK 16. Manufacturer designation: AK 16 – Connection terminal block – 0404033. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0404033 |
| Product Category | Terminals & Connectors |
| Product type | Pick-off terminal |
| Maximum load current | 76 A (with 16 mm² conductor cross-section) |
| Maximum power dissipation for nominal condition | 2.43 W |
| Nominal current I N | 76 A |
| Current carrying capacity of the neutral busbar | 140 A |
| Nominal cross section | 16 mm² |
| Connection method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 2.5 … 3 Nm |
| Stripping length | 16 mm |
| Conductor cross-section rigid | 1.5 mm² … 16 mm² |
| Cross section AWG | 14 … 6 (converted acc. to IEC) |
| Conductor cross-section flexible | 1.5 mm² … 16 mm² |
| Conductor cross-section, flexible [AWG] | 14 … 6 (converted acc. to IEC) |
| 2 conductors with same cross section, rigid | 1.5 mm² … 6 mm² |
| 2 conductors with same cross section, flexible | 1.5 mm² … 6 mm² |
| Dimensional drawing Width | 9.8 mm |
| Height | 16 mm |
| Depth | 34 mm |
| Length | 16 mm |
| Color | silver-colored |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
