Description

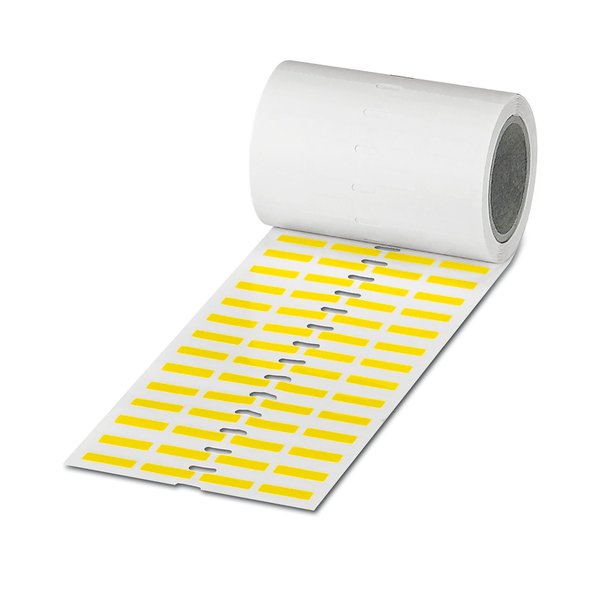

Phoenix Contact 0800107 — EML (19X6)R YE. Manufacturer designation: EML (19X6)R YE – Label – 0800107. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0800107 |
| Product Category | Terminals & Connectors |
| Product type | Device marker |
| Number of individual labels | 2500 |
| Identification technology | Thermal transfer |
| Width | 19.00 mm |
| Height | 6.00 mm |
| Depth | 0.08 mm |
| Text field width | 19 mm |
| Text field height | 6 mm |
| Foil strength | 55 µm |
| Adhesive strength | 20 µm |
| Adhesive | Acrylic |
| Color | yellow (RAL 1018) |
| Material | Polyester |
| Base element material | Polyester |
| Components | free from silicone and halogen |
| Ambient temperature (operation) | -40 °C … 100 °C |
| Result | Test passed |
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
| Requirements | ≥ 5 N |
| Test duration | 96 h |
| Procedure | Artificial irradiation. |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
