Description

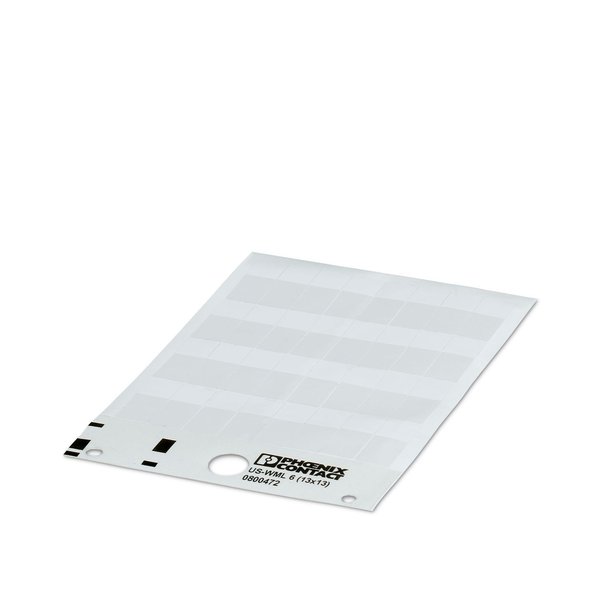

Phoenix Contact 0800472 — US-WML 6 (13X13). Manufacturer designation: US-WML 6 (13X13) – Cable marker label – 0800472. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0800472 |
| Product Category | Cables & Wiring |
| Product type | Conductor marker |
| Number of individual labels | 32 |
| Identification technology | Thermal transfer |
| Width | 13 mm |
| Height | 13 mm |
| Depth | 0.1 mm |
| Text field width | 13 mm |
| Text field height | 13 mm |
| Foil strength | 0.06 mm |
| Adhesive | Acrylic |
| Color | white (RAL 9010) |
| Base element material | PVC |
| Components | Silicone-free |
| External cable diameter | ≤ 6.00 mm |
| Ambient temperature (operation) | -40 °C … 80 °C |
| Recommended humidity (storage/transport) | 50 % |
| Result | Test passed |
| Specification | EN ISO 1518-1:2023 (following) |
| Requirements | ≥ 5 N |
| Test duration | 96 h |
| Procedure | Artificial irradiation. |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
