Description

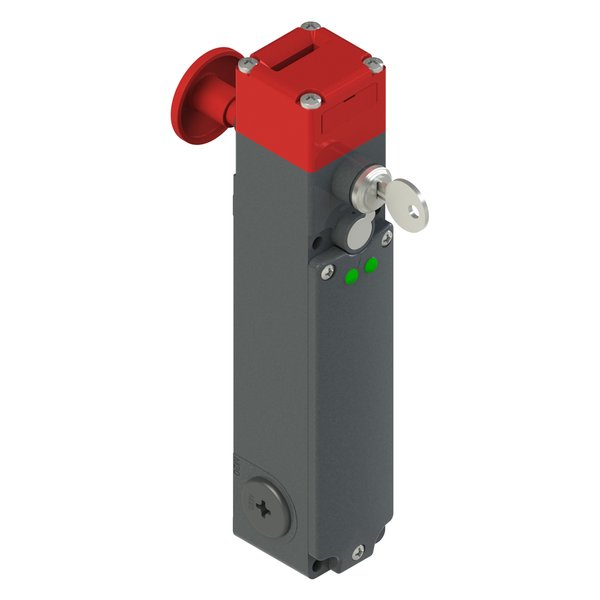

Pizzato FG 60ID6D0A — FG series safety switch. Manufacturer designation: FG series safety switch with separate actuator with lock. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Pizzato |
|---|---|
| Article No. (MPN) | FG 60ID6D0A |
| Product Category | Safety Switching Devices |
| Product family | FG series |
| Protection degree | IP67 according to EN 60529 with cable gland having equal or higher protection degree |
| Working method | D working method, locked actuator with de-energized solenoid |
| Housing | Metal housing, three M20x1,5 cable entries |
| Contact block | 1NO moved by actuator and 3NC moved by solenoid |
| Head | Rotating head with lock auxiliary release device and escape pushbutton |
| Power | 24 Vac/dc |
| Led | 2 green LED switched-on by the solenoid power supply |
| Actuator | Without actuator |
| Positive opening | Yes |
| Approvals | CCC Certificate, cULus Certificate, EAC Certificate, IMQ Certificate, UE Declaration of Conformity (Machinery Directive), UKCA Declaration of Conformity (The |
| Condition | New & original |
| Availability | On request |
Download official Pizzato General Catalog (PDF)
Independent distributor — not an authorised Pizzato dealer. All parameters are taken from the official manufacturer documentation.
