Description

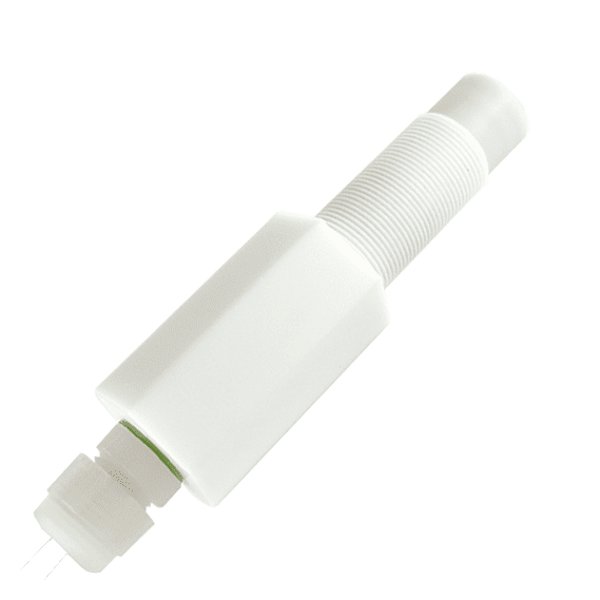

Rechner KAS-80-A23-S-M18-PTFE-Z02-1-E — Capacitive proximity sensor. New original part; availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KAS-80-A23-S-M18-PTFE-Z02-1-E |
| Article No. (MPN) | 803666 |
| Product Family | KAS-80 |
| Operating distance Sn | 8 mm |
| Operating voltage (UB) | 12…30 V DC |
| Voltage drop (Ud) | ≤ 2.0 V |
| Operating current (Ie) | 0…200 mA |
| No-load current (Io) | Typ. 15 mA |
| Switching frequency | max. 50 Hz |
| Output function | PNP |
| Housing material | PTFE (FDA 21 CFR 177.1550) |
| Degree of protection | IP68 |
| Ambient temperature | -25…+70 °C |
| Connection | Cable, PTFE, 2 m, 3 x 0.22 mm² |
| Mounting | Non-flush |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. Parameters from the official Rechner datasheet.
