Description

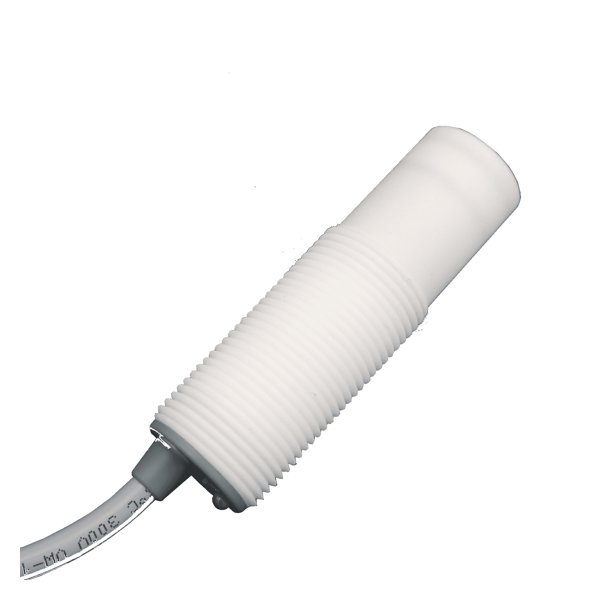

Rechner KAS-80-23-A-M22-PTFE-100C-Z02-1 — Capacitive proximity sensor. New original part; availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KAS-80-23-A-M22-PTFE-100C-Z02-1 |
| Article No. (MPN) | 812910 |
| Product Family | KAS-80 |
| Operating voltage (UB) | 12…30 V DC |
| Voltage drop (Ud) | ≤ 2.0 V |
| No-load current (Io) | < 15 mA |
| Switching frequency | max. 50 Hz |
| Output function | PNP |
| Housing material | PTFE (FDA 21 CFR 177.1550) |
| Degree of protection | IP 67 |
| Ambient temperature | -25…+100 °C |
| Connection | Cable, 2 m, PVC, 4 x 0.34 mm² |
| Mounting | Non-flush |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. Parameters from the official Rechner datasheet.
