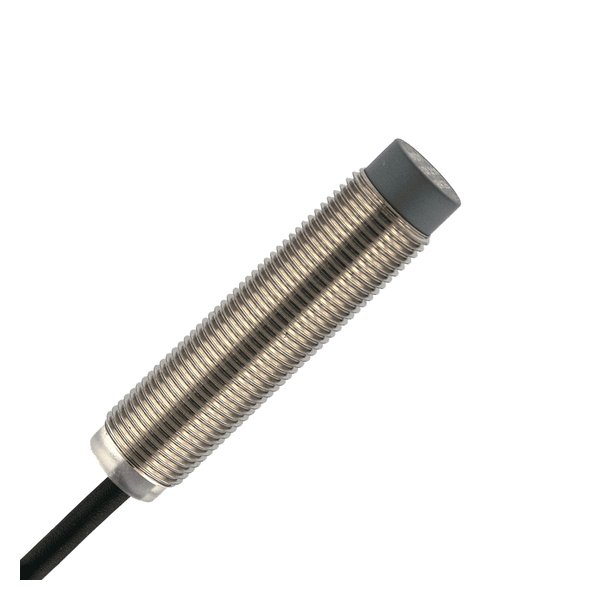

Rechner IAS-10-A22-S-M12-PBT/MS-Z03-0 — Inductive sensors. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | IAS-10-A22-S-M12-PBT/MS-Z03-0 |
| Article No. (MPN) | IA0248 |
| Product Category | Sensors |
| Sensing distance (Sn) | 4 mm |
| Operating distance Sn | 4 mm |
| Operating voltage (UB) | 5…36 V DC |
| Operating current (Ie) | 0…200 mA |
| Output function | PNP |
| Housing material | Brass |
| Degree of protection | IP 68 |
| Ambient temperature | -40…+85 °C |
| Connection | Cable, 3 m, PUR, 3 x 0.34 mm² |
| Mounting | Non-flush |
| Condition | New & original |
| Availability | On request |
