Description

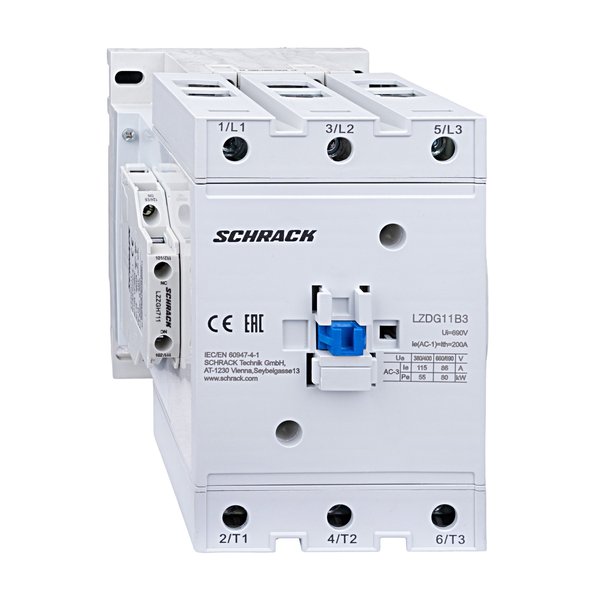

Schrack Technik LZDG11B3– — Contactor 3-pole. Manufacturer designation: Contactor 3-pole, CUBICO Grand, 55kW, 115A, 1NO+1NC, 230VAC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schrack Technik |
|---|---|
| Article No. (MPN) | LZDG11B3– |
| Product Category | Contactors |
| Net width | 120,00mm |
| Net height | 156,00mm |
| Netto depth | 155,00mm |
| Net weight | 3,39kg |
| Power loss | 29,00W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Size type | Grand |
| Coil voltage | 230V |
| Rated current | 115A |
| Rated output AC-3/400V | 55kW |
| Packaging units | 1 pcs, 2 pcs |
| EAN / GTIN | 9004840845532 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Schrack Technik dealer. All parameters are taken from the official manufacturer documentation.
