Description

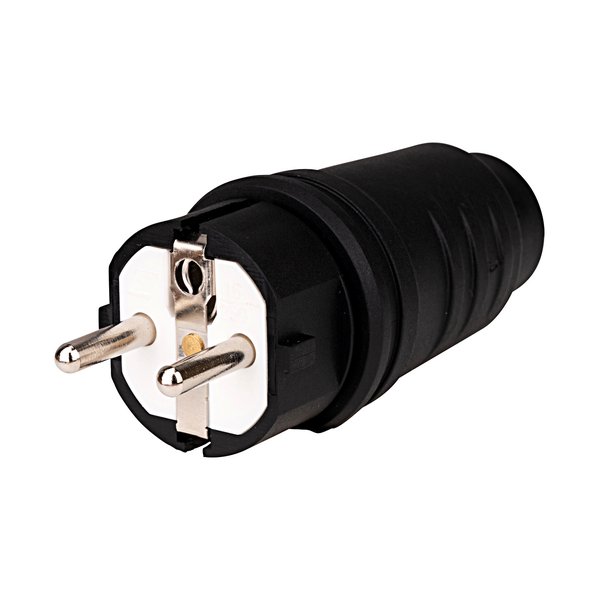

Schrack Technik YY714316– — Schuko Plug Impact Resistant. Manufacturer designation: Schuko-Plug, impact resistant,16A, 250V, IP44, black, type F. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schrack Technik |
|---|---|
| Article No. (MPN) | YY714316– |
| Product Category | Switches & Socket-Outlets |
| Net length | 100,00mm |
| Net width | 42,00mm |
| Netto depth | 42,00mm |
| Net weight | 0,07kg |
| Power loss | 1,00W |
| Rated current | 16A |
| Contact arrangement | 2P+PE |
| IP Rating | IP44 |
| Color code | blue |
| Rated operating voltage | 250V |
| Frequency | 50/60Hz |
| Contact material | Brass |
| Connection type | Screw clamps |
| Standard | EN 60309-1, NF C 61-314 |
| Min. cross section, flexible wire with ferrule | 1,50mm² |
| Max. cross section, flexible wire with ferrule | 2,50mm² |
| Min. cross section, flexible wire | 1,50mm² |
| Max. cross section, flexible wire | 2,50mm² |
| Max. cable diameter | 16,50mm |
| Stripping length L/N | 9mm |
| Stripping length PE | 10mm |
| EAN / GTIN | 9004840842678 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Schrack Technik dealer. All parameters are taken from the official manufacturer documentation.
