Description

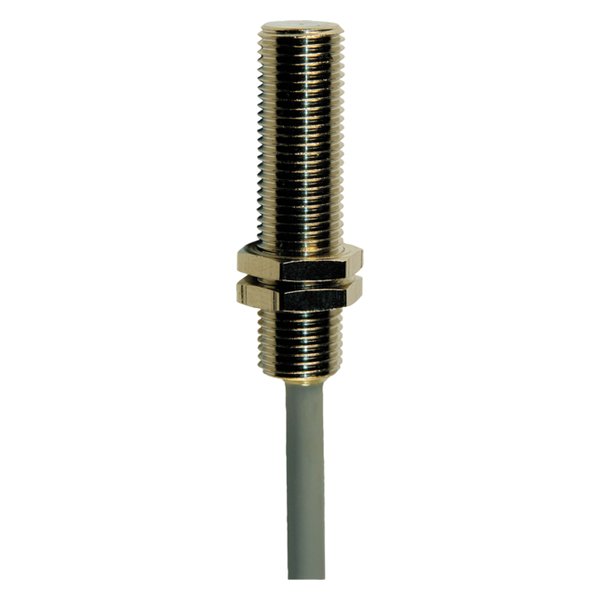

Steute RC 20 1W-1m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RC 20 1W-1m |
| Article No. (MPN) | 1045820 |
| Product Category | Sensors |
| Applied standards | EN IEC 60947-5-2 |
| Enclosure | brass, nickeled |
| Degree of protection | IP67 (IEC/EN 60529) |
| Switching system | reed contacts |
| Switching elements | 1 change-over contact |
| Connection | cable PVC LiYY |
| Cable cross-section | 3 x 0.14 mm² |
| Cable length | 1 m |
| Switching voltage | max. 175 VAC/DC |
| Switching current | max. 0.25 A |
| Switching capacity | max. 3 W |
| Ambient temperature | -5 °C … +70 °C |
| Mechanical life | 10 9 operations |
| Repeatability | ± 0.02 mm |
| Vibration resistance | 30 g (50-2000 Hz) |
| Shock resistance | 50 g (11 ms, ½ sin) |
| Weight | 32 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
