Description

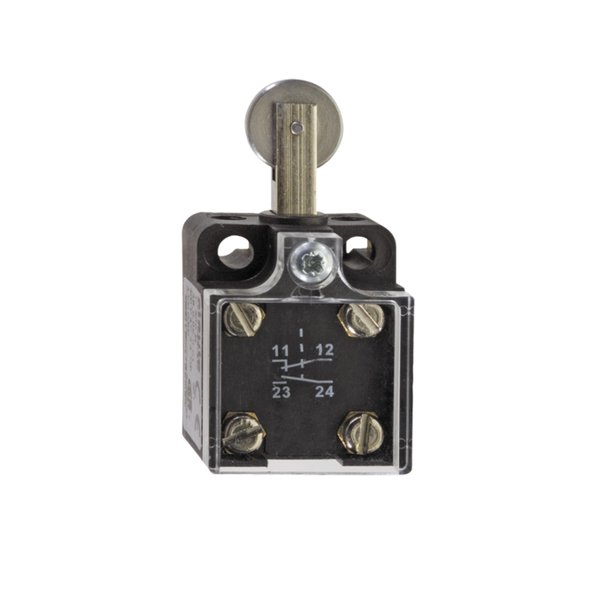

Steute C 500 R 1Ö/1S. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | C 500 R 1Ö/1S |
| Article No. (MPN) | 1046932 |
| Product Category | Sensors |
| Applied standards | EN ISO 13849-1, EN 60947-5-1 |
| Actuator | plunger: brass |
| B 10d (10 % load) | 70 000 – with an actuating angle of 30° |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Connection | screw connection terminals |
| Cable cross-section | max. 1.5 mm² |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 400 V |
| Conventional thermal current I the | 4 A |
| Rated operating current/voltage I e /U e | 4 A/400 VAC |
| Utilisation category | AC-15 |
| Short-circuit protection | 4 A gG/gN fuse |
| Ambient temperature | -20 °C … +75 °C |
| Mechanical life | 70 000 operations – with an actuating angle of 30° |
| Operation cycles | max. 1800/h |
| Repeat accuracy of switching points | ± 0.1 mm |
| Contact opening | max. 2 x 4 mm |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
