Description

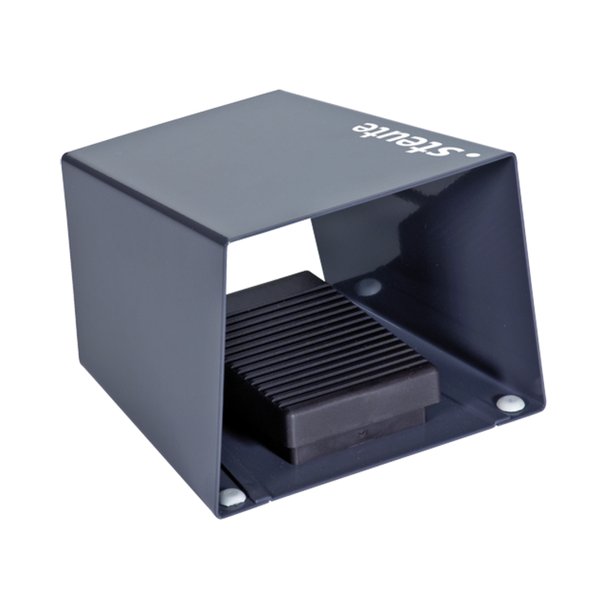

Steute KFS 1PW – 2m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | KFS 1PW – 2m |
| Article No. (MPN) | 1049352 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1 |
| Protective shield | steel, powder-coated, RAL 7015 |
| Degree of protection | IP65 (IEC/EN 60529) |
| Connection | cable 3 x AWG 20 |
| Cable length | 2 m |
| Cable diameter | 4.8 mm ±3% |
| Cable cross-section | 3 x 0.52 mm² |
| Safety class | II |
| Switching system | snap action: micro switch |
| Switching elements | 1-pole change-over contact |
| Switching voltage | 12 … 250 VAC/DC |
| Switch-on current | max. 5 A |
| Switch-on power | max. 1250 VA |
| Short-circuit protection | 5 A gG/gN fuse |
| Ambient temperature | -10 °C … +60 °C |
| Mechanical life | > 1 million operations |
| Approvals | d a |
| Weight | 885 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
