Description

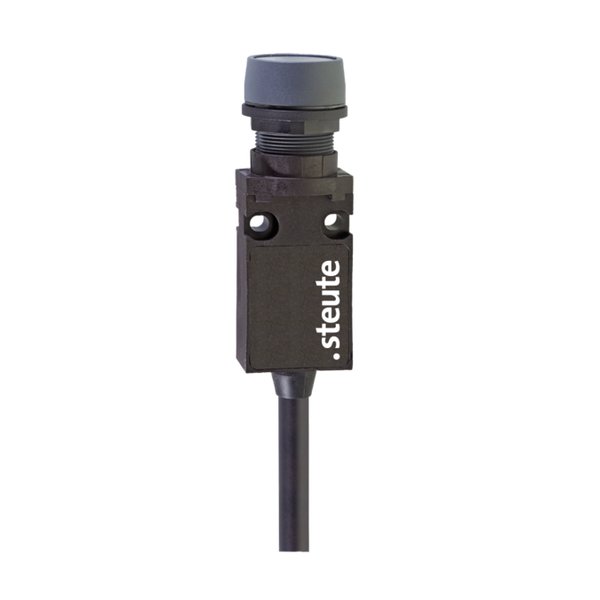

Steute ES 14 RT 1Ö/1S-1m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | ES 14 RT 1Ö/1S-1m |
| Article No. (MPN) | 1051617 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN ISO 13849-1 |
| Degree of protection | IP65 (IEC/EN 60529) |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Connection | cable H05VV-F |
| Cable cross-section | 4 x 0.75 mm² |
| Cable length | 1 m |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | 6 A |
| Rated operating current/voltage I e /U e | 6 A/250 VAC; 0.25 A/230 VDC |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 6 A gG/gN fuse |
| Ambient temperature | -20 °C … +75 °C |
| Mechanical life | > 30 000 operations |
| Operation cycles | max. 1800/h |
| Contact opening | max. 2 x 4 mm |
| Weight | 120 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
