Description

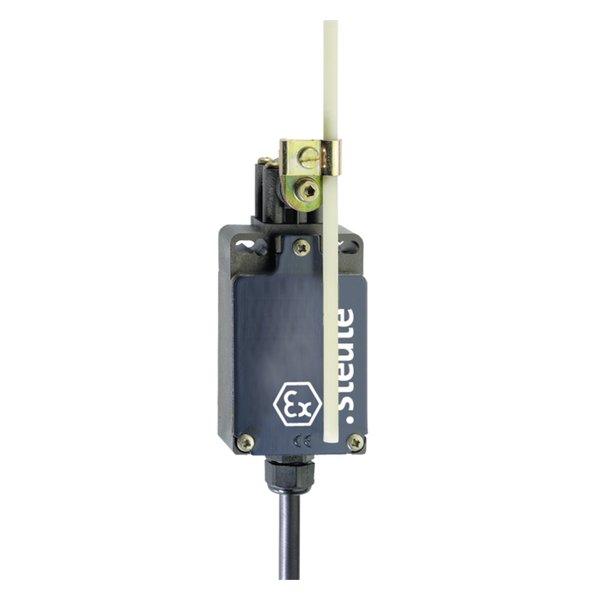

Steute Ex T 356 4V10H 1Ö/1S-2m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex T 356 4V10H 1Ö/1S-2m |
| Article No. (MPN) | 1175269 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN IEC 60079-0, EN 60079-1, EN 60079-31 |
| Cover | steel, enamel finish |
| Degree of protection | IP65 (IEC/EN 60529) |
| Switch insert | 1 x Ex 13 |
| Contact material | silver |
| Switching system | slow action |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Connection | cable H05VV-F |
| Cable cross-section | 4 x 0.75 mm² (incl. conductor ferrules) |
| Cable length | 2 m |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Rated operating current/voltage I e /U e | 6 A/250 VAC; 0.25 A/230 VDC |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 6 A gG fuse |
| Mechanical life | > 1 million operations |
| Actuating speed | max. 2.5 m/s with a vertical actuating angle of 30° |
| Operation cycles | max. 1800/h |
| Repeat accuracy of switching points | ± 0.1 mm |
| Contact opening | max. 2 x 4.5 mm |
| Condition | New & original |
| Availability | On request |
