Description

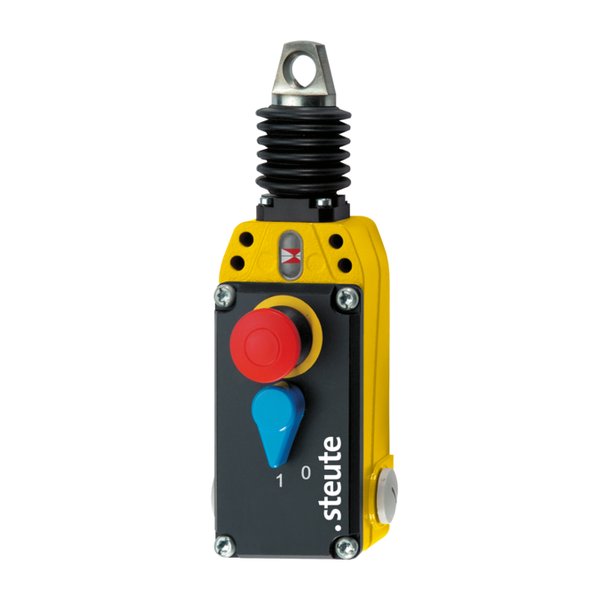

Steute ZS 80 3Ö/1S WVD. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | ZS 80 3Ö/1S WVD |
| Article No. (MPN) | 1178758 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1 |
| Enclosure | aluminium die-cast, powder-coated, RAL 1003 |
| Tightening torque | cover screws: 2.4 Nm |
| Degree of protection | IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 200 000 |
| T m | max. 20 years |
| Contact material | silver |
| Switching elements | 3 NC/1 NO contacts, type Zb |
| Switching system | slow action, positive break NC contacts A |
| Connection | 2 x 4 pole terminal block |
| Cable cross-section | max. 2.5 mm² (incl. conductor ferrules) |
| Cable entry | 3 x M20 x 1.5 (for cable glands only) |
| Rated impulse withstand voltage U imp | 2.5 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | 2 A |
| Conditional short-circuit current | 1000 A |
| Utilisation category | AC-15; DC-13 |
| Rated operating current/voltage I e /U e | 2 A/250 VAC; 0.25 A/230 VDC; 2 A/24 VDC |
| Short-circuit protection | 2 A gG fuse |
| Ambient temperature | -25 °C … +70 °C |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
