Description

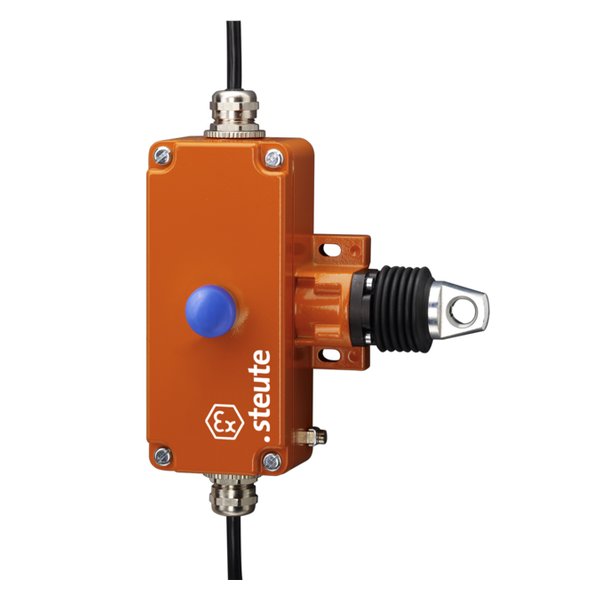

Steute Ex ZS 75 4Ö WVD / 295-390 N – 3m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex ZS 75 4Ö WVD / 295-390 N – 3m |
| Article No. (MPN) | 1182047 |
| Product Category | Sensors |
| Enclosure | aluminium die-cast, powder-coated |
| Cover | aluminium die-cast, powder-coated |
| Degree of protection | IP65 (IEC/EN 60529) |
| B 10d (10 % load) | 200 000 |
| T m | max. 20 years |
| Switch insert | 2 x Ex 14 |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 4 NC contacts, type Zb |
| Connection | cable H05VV-F |
| Cable length | 3 m |
| Cable cross-section | 4 x 0.75 mm² (incl. conductor ferrules) per switch insert |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | T6: 6 A, T5: 3 A |
| Utilisation category | AC-15; DC-13 |
| Rated operating current/voltage I e /U e | 6 A/250 VAC; 0.25 A/230 VDC |
| Short-circuit protection | 6 A gG/gN fuse |
| Mechanical life | > 100 000 operations |
| Max. wire length | 130 m |
| Condition | New & original |
| Availability | On request |
