Description

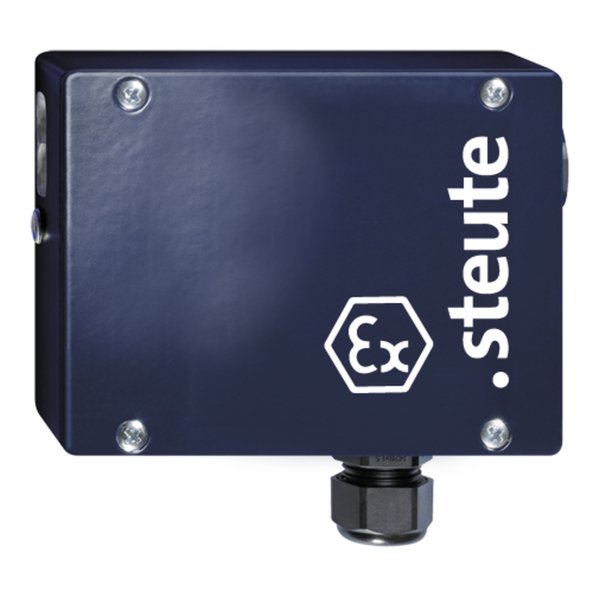

Steute Ex AZM 415 1Ö1S/1Ö1S A-3D. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex AZM 415 1Ö1S/1Ö1S A-3D |
| Article No. (MPN) | 1182198 |
| Product Category | Sensors |
| Enclosure | aluminium die-cast, enamel finish |
| Cover | aluminium, enamel finish |
| Switch type | type 2 |
| Coding level | low coding |
| Degree of protection | IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact + 1 NC/1 NO contact |
| Connection | screw connection terminals |
| Cable cross-section | max. 2.5 mm² (incl. conductor ferrules) |
| Clamping range | 7 … 12 mm |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | 6 A |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 6 A gG/gN fuse |
| Power consumption | max. 12 W (250 ms) |
| Ambient temperature | -20 °C … +55 °C |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
